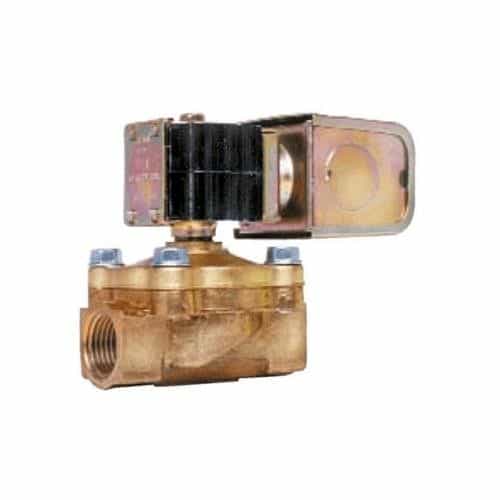

Dema 474P.3 Brass 1/2 in. Solenoid Valve, Buna Seal, 24VAC Coil
Brand:
Mfr. Model #:
474P.3
KR Part #:
SOD474P24
Weight:
1.93 lbs
This is a buna solenoid valve with a normally closed operating position and 120VAC junction box coil.
Prop 65
Technical Specifications
Max PSI: 150
Product Description
Normally Closed Diaphragm Solenoid Valve
A solenoid valve is an electromechanically operated valve. The valve is controlled by an electric current through a solenoid: in the case of a two-port valve the flow is switched on or off; in the case of a three-port valve, the outflow is switched between the two outlet ports.
This normally closed valve opens when the solenoid coil is energized. When the coil is deenergized, a spring pushes the plunger towards the pilot hole in the diaphragm to block any water above the diaphragm from flowing out. This valve is intended for use with water, air, light oil, and other noncorrosive fluids. Not to be used with gasoline and other hazardous fluids.
- Brass material
- 1/2" NPT connections
- Normally closed
- Buna seal
- 24VAC junction box coil
- Maximum pressure 150 PSI
- Maximum fluid temp. 200 degrees Fahrenheit
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
