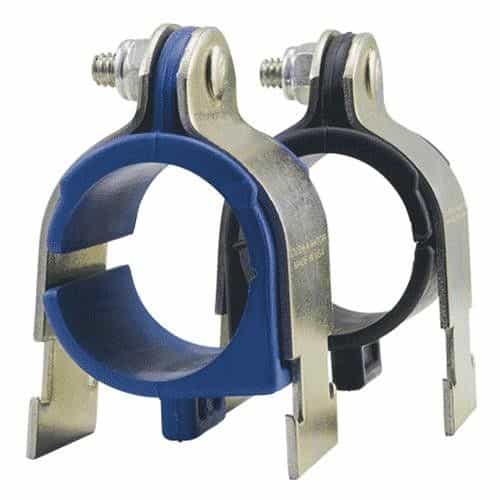

ZSI Inc. CN18SS Stainless Steel Cush-A-Nator Clamp For 1 1/8in. Steel Tube

Mfr. Model #:
KR Part #:
0.20 lbs
In Stock
Now Only!
A new breakthrough in cushioned clamping, Cush-A-Nator clamps secure steel piping reduce the harmful effects of mechanical shock and strong vibrations in fluid power systems. This rugged 304 stainless steel clamp has a durable thermoplastic rubber cushion that resists high heat and provides long life against vibration fatigue.
Prep 65

Prop 65


Product Description

Stainless Steel CUSH-A-NATOR Clamp 1 1/8In OD

The Cush-A-Nator® has the exclusive "Thumb Drive" that provides the installer a gripping point to easily open the cushion with the help of leverage tabs and a living hinge. It can be opened and placed over the pipe or tube and rotated into place while on the channel and automatically aligned with the channel opening ready for clamping.

The Cush-A-Nator® cushion also has a built in squeeze control as part of the cushion design. The side opening and the squeeze control tab provides evenly distributed Cush-A-Nator® is the only strut mounted cushion that is mechanically connected to the supporting steel clamp because the bolt passes through the squeeze control tab forming the single unit connection. This design helps prevent the cushion from excess vibration by being attached directly to the clamp.

Dimensions: 1.62" L x 1.57" W x 2.08" H

  • Stainless Steel and TPE construction
  • Includes clamp halves with captured stud, cushion, nylon lock nut
  • Built in pressure control
  • Self-aligning
  • Easy and effortless to install
  • Temp Range: -50 to 275 degrees F
  • For 1 1/8" pipe/tubing
  • Standards: MSS SP-58, MSS SP-69
  • Materials: 304 stainless steel clamp/standard TPE cushion

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to
