ZSI Inc. CN04 Cush-A-Nator Clamp For 1/4in. Steel Tube

Mfr. Model #:
KR Part #:
0.10 lbs
Usually Ships in 3 Weeks
Now Only!
A new breakthrough in cushioned clamping, Cush-A-Nator clamps secure steel piping reduce the harmful effects of mechanical shock and strong vibrations in fluid power systems. This rugged steel clamp has a durable thermoplastic rubber cushion that resists high heat and provides long life against vibration fatigue.
Prep 65

Prop 65


Product Description

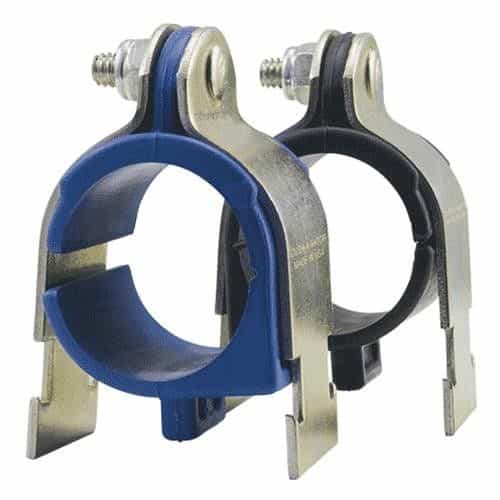

CUSH-A-NATOR Clamp 1/4 In. OD

The Cush-A-Nator® has the exclusive "Thumb Drive" that provides the installer a gripping point to easily open the cushion with the help of leverage tabs and a living hinge. It can be opened and placed over the pipe or tube and rotated into place while on the channel and automatically aligned with the channel opening ready for clamping.

The Cush-A-Nator® cushion also has a built in squeeze control as part of the cushion design. The side opening and the squeeze control tab provides evenly distributed pressure around the tube or pipe.

Cush-A-Nator® is the only strut mounted cushion that is mechanically connected to the supporting steel clamp because the bolt passes through the squeeze control tab forming the single unit connection. This design helps prevent the cushion from excess vibration by being attached directly to the clamp.

Dimensions: .62in W x .98in H

  • Steel and TPE construction
  • Includes clamp halves with captured stud, cushion, nylon lock nut
  • Built in pressure control
  • Self-aligning
  • Easy and effortless to install
  • Temp Range: -50 to 275 degrees F
  • For 1/4" pipe/tubing
  • Standards: MSS SP-58, MSS SP-69
  • Materials: plated steel clamp/standard TPE cushion
