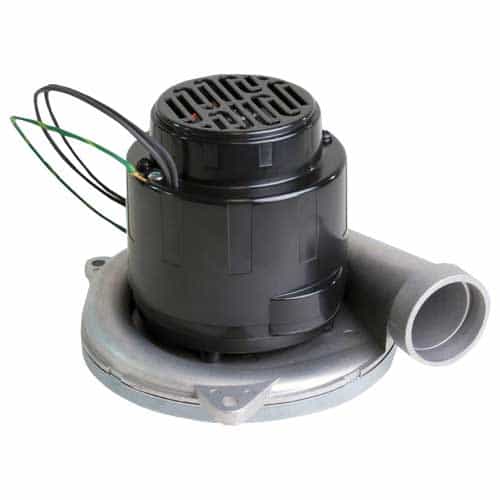

Ametek 122209-18 Motor 120V, 6.6 Frame

Brand:
Mfr. Model #:
122209-18
KR Part #:
VAL2209-18
Weight:
9.35 lbs
Drop Shipped Item
MSRP
$248.42
Now Only!
$170.05

A 6.6-inch frame motor for car wash vacuums. It accepts 120 VAC electrical connections. The motor handles a maximum speed of 31,150 RPM.




Product Description

Lamb Ametek 122209-18 is a replacement tangential motor for vacuums at your car wash. The frame measures 6.6 inches in diameter to fit the footprint of the original on your vacuum. It is wired for compatibility with 120 VAC electrical connections. The maximum speed this motor can sustain is 31,150 RPM.

Specifications:

  • Manufacturer: Lamb Ametek
  • Product Number: 122209-18
  • Motor Type: Bypass
  • Discharge: Tangential
  • Bearings: Double Ball Bearing
  • Sealed Vacuum: 96.9 inches
  • Maximum Air Watts: 553
  • Maximum Air Flow: 158.3 CFM
  • Max Amps: 12.3
  • Motor Speed: 31,150 RPM
  • Voltage: 120 VAC
  • Frame Size: 6.6"
