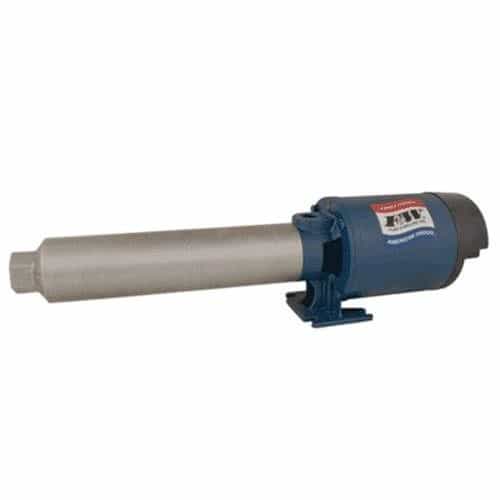

Flint and Walling PB1016S153 Multi-Stage 1.5 HP Booster Pump, 3 Phase, 208-240/480 VAC, 3/4 in. FNPT, 15 GPM
Brand:
Mfr. Model #:
PB1016S153
KR Part #:
FWPB1016S153
Weight:
54.20 lbs
Availability:
3
The Flint and Walling 1.5 horsepower booster pump increases pressure from mains or pumps from other sources. This model features 304 SS radial bearing and Noryl impeller. Self-priming to 10 ft., flow of up to 15 GPM.
Technical Specifications
Max PSI: 300
Max GPM: 15.0
Voltage AC: 208-240/480
Amps: 5.7/2.85
RPM: 3450
Horsepower: 1.5
Max Temperature: 140 degrees F
Phase: Three
Inlet Port: 3/4 inch
Product Description
Drip-Proof Multi-Stage 1.5 Horsepower Booster Pump
Flint and Walling booster pumps are ideal for use in applications such as pressure-boosting systems, reverse osmosis, irrigation, and water circulation. This pump features a stainless steel housing with stainless steel, Viton, and carbon/ceramic seal materials internally for durability and reliability. Closed Noryl impeller provides up to 15 GPM flow at 40 PSI. For use with clear water only. Ready for continuous duty, in ambient temperatures up to 149 F (65 C). CSA, CUS, and UL listed.
Specifications
- Horsepower: 1.5 HP
- Voltage: 208-240/480VAC
- Phase: 3 Phase
- Maximum Output Pressure: 212 PSI
- Maximum Case Pressure: 300 PSI
- Maximum Temperature: 140 F
- Amps: 5.7/2.85
- Maximum Flow: 15 GPM @ 40 PSI
- RPM: 3450
