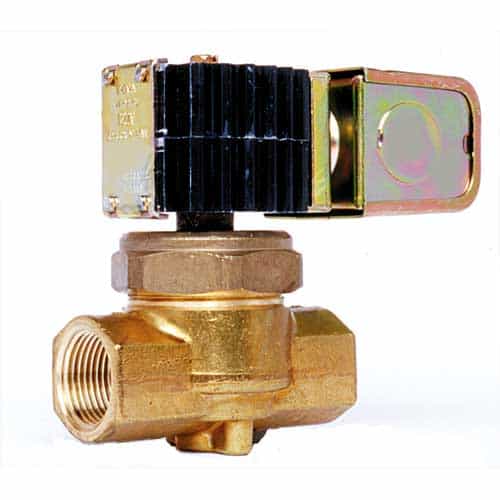

Dema A416P.9 Brass 3/4 in. Pilot-Piston Valve with 208-240VAC Coil
Brand:
Mfr. Model #:
A416P.9
KR Part #:
SOD416P240
Weight:
3.00 lbs
This A416P pilot operated piston solenoid valve has a 208-240VAC junction box coil, teflon seal, and maximum pressure of 150 PSI.
Prop 65
Technical Specifications
Max PSI: 150
Product Description
3/4" Normally Closed Solenoid Valve - 150 PSI
This is a pilot-piston operated, general purpose solenoid valve. It is designed for use with water, air, light oil, and noncorrosive fluids. Do not use for gas and other hazardous or explosive fluids.
With this A416P model, the stem and plunger assembly opens the port. This releases pressure on top of the piston, which opens the main valve port. Dema pilot-piston solenoid valves are available for 3/8" to 1" pipes.
Size: 3/4" NPT
Specifications:
- Rated for 200 degrees Fahrenheit fluid temp. and 120 degrees Fahrenheit ambient temp.
- CV flow factor: 5.00
- Orifice diameter: 0.593
- Brass construction
- Stainless steel seat
- Teflon seal
- 208-240VAC junction box coil
- Maximum pressure: 150 PSI
- Normally closed
