3535 CAT PUMPS- 36 GPM, 1200 PSI, 30.0 Max HP

Brand:
Mfr. Model #:
3535
KR Part #:
PU03535
Weight:
159.00 lbs
In Stock
MSRP
$7,542.00
Now Only!
$4,660.68
The CAT Pumps 3535 triplex plunger pump is the leading choice in touch-free and friction automatic car wash systems. It provides dependability and low maintenance.
Freight Only

Freight Only




Technical Specifications

Inlet Port: 1 1/2 inch
Max GPM: 36
Max PSI: 1200
Max Temperature: 160 degrees F
RPM: 800

Product Description

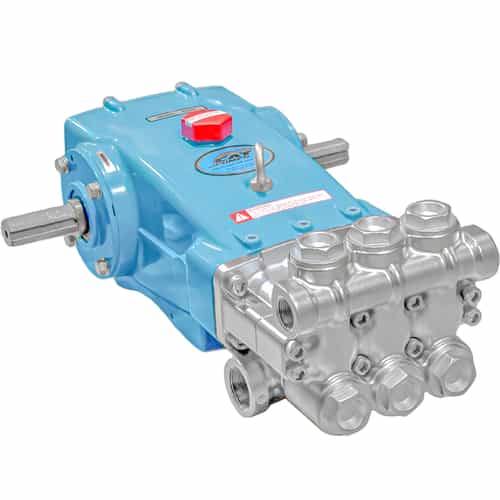

CAT Pumps 3535 - 35 Frame Plunger Pump

High capacity plunger pump ideal for multi-gun, multi-nozzle, and industrial high pressure systems! The CAT Pumps 3535 triplex design offers high efficiency and low pulsation. Its durable, dual v-packings are lubricated and cooled by pumped liquid.

The 3535 model is a triplex, positive displacement, reciprocating plunger pump. Features include a forged brass manifold, 304 stainless steel valve assemblies, and solid ceramic plungers. The CAT Pumps 3535 model has standard NBR (Buna-N) seals and o-rings. Pre-set, low-pressure seals provide secondary protection against external leaks and require no packing adjustments.

3535 Pump Dimensions: 23.89" x 18.11" x 9.72"

CAT Pump 3535 Specifications:

  • Maximum flow: 36 GPM (136 lpm)
  • Pressure range: 100 to 1200 PSI (83 bar)
  • Maximum RPM: 800RPM
  • Stroke: 1.890" (48 mm)
  • Inlet pressure range: flooded to 70 PSI
  • Bore: 1.575" (40 mm)
  • Crankcase capacity: 4.2 qts./134.4 oz. (4 L)
  • Maximum liquid temperature: 160 degrees F (71 degrees C)
  • Inlet ports (2):1 1/2" NPTF
  • Discharge ports (2): 1" NPTF
  • Shaft diameter: 1.378" (35 mm)
  • Three plunger rods (triplex design)

Related Parts for CAT Pump 3535:

  • 6107 crankcase oil
  • 7376 pressure regulator
  • 7590 multiple gun pressure unloader
  • 7593 multiple gun pressure unloader
  • 7595 high flow relief valve
  • 6088 pressure gauge
  • 714500 captive acceleration tube
  • 7108.8 inlet filter
  • 990844 flexible inlet hose
  • 990833 flexible discharge hose
