CAT Pumps 270 Brass Head 3.5 GPM 3 Frame Plunger Pump - 1500 PSI

Brand:
Mfr. Model #:
270
KR Part #:
PU00270
Weight:
15.00 lbs
GTIN:
814338023064
Availability:
3
Low Stock Warning
MSRP
$1,150.00
Now Only!
$588.80

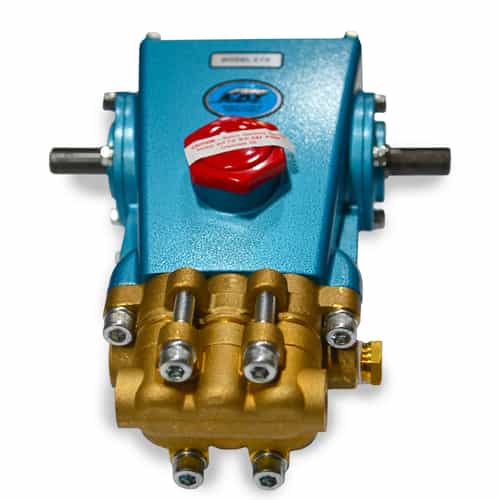

The CAT 270 is a three frame plunger pump with a steel crankcase and a brass manifold. 1/2" x 3/8" F ports. Max 3.5 GPM and 1500 PSI.




Technical Specifications

Crankcase Capacity: 15 oz.
Inlet Port: 1/2 inch
Max GPM: 3.5
Max PSI: 1500
Max Temperature: 160 degrees F
RPM: 1420

Product Description

CAT Pump 270 Details

The CAT Pumps 270 model includes 1/2" female NPT inlet ports and 3/8" female NPT outlet ports. Use this strong, lightweight, high-efficiency triplex pump for car wash systems, desalination, chemical injection, and more!

This model is a triplex type plunger pump with 304 stainless steel valve assemblies, solid ceramic plungers, and a forged brass manifold. CAT triplex pumps are precisely engineered and designed for smoother liquid flow, extended life, and unmatched durability -even at high pressure levels.

CAT 270 Specifications:

  • 3.5 GPM flow rate
  • 1500 PSI maximum pressure
  • 100-1500 PSI pressure range
  • 13mm stroke (.512")
  • 16.5mm shaft (.650")
  • 15 oz. crankcase capacity
  • 1420 RPM
  • 1/2" NPT-F inlet port
  • 3/8" NPT-F outlet port
  • Standard NBR seals
  • 160°F maximum liquid temperature
  • 3 frame style
  • Single phase
  • Flooded to 60 PSI inlet pressure range

Dimensions:

  • 10.22" x 8.78" x 5.30"

Superior Design:

  • Triplex plunger design provides smoother liquid flow.
  • Hi-Pressure Seals are completely lubricated and cooled by the liquid being pumped.
  • Inlet and discharge valve assemblies interchange for easier maintenance.
  • Lubricated Lo-Pressure Seals provide double protection against external leakage.
  • Oil bath crankcase assures optimum lubrication.
  • Close tolerance concentricity of the ceramic plunger maximizes seal life.
  • Optional Belt Drive or Motorized versions offer system flexibility.

Quality Materials:

  • Precision design 304 stainless steel valves and seats are hardened and polished for ultimate seating &
  • extended valve life.
  • Brass manifold is strong and corrosion resistant.
  • Special concentric, high-density, polished, solid ceramic plungers provide a true wear surface and
  • extended seal life.
  • Specially formulated, Hi-Pressure Seals offer unmatched performance & seal life.
  • Die cast aluminum crankcase provides high strength, minimum weight and precision tolerance control.
  • Chrome crankshaft gives unmatched strength and surface hardness.
  • Oversized crankshaft bearings with greater capacity mean longer bearing life.

Easy Maintenance:

  • Wet-end is easily serviced without entering crankcase, requiring less time and effort.
  • Preset packings mean no packing gland adjustment is necessary, reducing maintenance costs.
