623 Cat Pump - 6.0 GPM, 1200 PSI, 6.0 HP

Brand:
Mfr. Model #:
623
KR Part #:
PU00623
Weight:
30.20 lbs
GTIN:
814338021572
Availability:
1
Low Stock Warning
MSRP
$2,697.00
Now Only!
$1,380.86

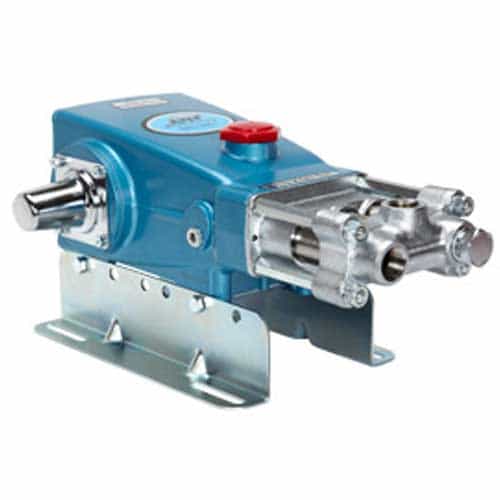

Top seller! This is a triplex positive displacement, reciprocating, piston pump. Note: Brackets pictured are not included!



Technical Specifications

Bore: 20 millimeter
Crankcase Capacity: 40 ounce
Max PSI: 1200
RPM: 850
Max GPM: 6
Inlet Port: 1 inch
Shaft Diameter: 25 millimeter
Stroke: 28.5 millimeter
Max Temperature: 160 degrees F

Product Description

10 Frame Piston Pump

This pump is made with brass manifolds, 304 stainless steel valve assemblies, chrome-plated 304 stainless steel cylinders and sleeves. It comes standard with NBR (Buna-N) seals and o-rings. Its low RPM is designed for belt drive use. The triplex uniflow design provides continuous liquid for smooth operation.

CAT Pumps is an industry-leading manufacturer of reliable and dependable pumps. Click here to shop our full selection of CAT Pumps.

Pump Dimensions:  17.28" x 11.42" x 6.3"

Pump Features:

  • Three piston rods
  • Wetted cups and floating pistons are lubricated and cooled by pumped liquid
  • Mechanically actuated inlet valves for strong lift and easy prime
  • Oil bath crankcase for optimum lubrication
  • 100% wetted seal design allows pumped liquid to cool and lubricate for a long service life

Pump Specifications:

  • Maximum Flow: 6 GPM
  • Pressure Range: 100-1200 PSI
  • RPM: 850
  • Bore: 0.787"
  • Stroke: 1.122"
  • Crankcase Capacity: 40 oz.
  • Inlet Pressure Range: -8.5 to 40 PSI
  • Inlet Port (1): 1" NPTF
  • Discharge Ports (3): 3/4" NPTF
  • Shaft Diameter: 0.984"

Compatible Pump Parts:
