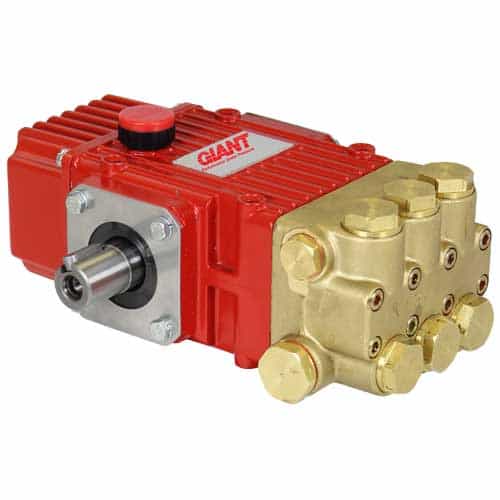

Giant Pumps P219L Triplex Plunger Pump, 4.2 GPM, 2500 PSI, Left Shaft
Brand:
Mfr. Model #:
P219L
KR Part #:
PUP219L
Weight:
17.00 lbs
Availability:
1
Low Inventory Get It Today
Manuals
An American-made triplex plunger positive displacement pump with reciprocating plungers for direct or belt drive applications. Durable aluminum crankcase, solid ceramic plungers, and stainless steel valves provide resiliency. Perfect for car wash, pressure wash, and agricultural uses.
Technical Specifications
RPM: 1750
Max GPM: 4.2
Max PSI: 2500
Inlet Port: 1/2 inch
Max Temperature: 160 degrees F
Bore: 18 millimeter
Stroke: 12.4 millimeter
Shaft Diameter: 24 millimeter
Crankcase Capacity: 9 ounce
Product Description
Left Shaft Plunger Pump
This Giant Pumps P219L plunger pump features a left-side mounted shaft for easy pump room configuration. This high-quality positive displacement plunger pump has a maximum flow rate of 4.2 GPM at 1750 RPM. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.
Specifications:
- Flow: 4.2 GPM
- Pressure: 2500 PSI
- Pump Speed: 1750 RPM
- Maximum Inlet Pressure: 145 PSI
- Maximum Temperature: 160 °F
- Plunger Diameter: 18 mm
- Stroke: 12.4 mm
- Crankshaft Diameter: 24 mm
- Crankshaft Rotation: Top of pulley towards manifold
- Crankshaft Mounting: Left
- Inlet Ports: (2) 1/2" BSP
- Discharge Ports: (2) 3/8" BSP
- Crankcase Oil Capacity: 7.5 fluid ounces
- Extended Crankcase Oil Capacity: 9.0 fluid ounces
- Weight: 11.7 lbs.
Key Component Material:
- Manifold: Special brass
- Plungers: Solid ceramic oxide
- Valves: High grade stainless steel
- Seals: Nitrile with fabric reinforcing
- Gear End: Aluminum
