CAT Pumps 5CP2140B Triplex Plunger Pump - 4GPM, 2500 PSI

Brand:
Mfr. Model #:
5CP2140BCS
KR Part #:
PU5CP2140B
Weight:
21.00 lbs
Usually Ships in 2 Weeks
MSRP
$1,554.00
Now Only!
$795.64

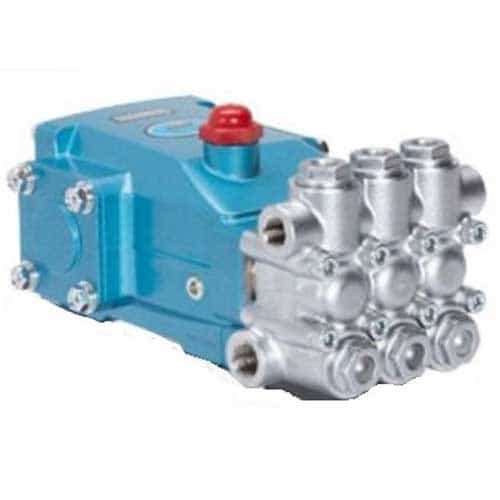

This CAT Pump is constructed of special brass manifolds and 304 stainless steel valve assemblies. The 5CP2140BCS is a triplex plunger pump offering 4 GPM and a 2500 maximum PSI rating.




Technical Specifications

Max GPM: 4
Max PSI: 2500
RPM: 1725
Crankcase Capacity: 17oz
Max Temperature: 160 degrees F
Bore: 18 millimeter
Stroke: 16 millimeter
Shaft Diameter: 20 millimeter
Inlet Port: 1/2"

Product Description

 2500 PSI CAT Pump 4GPM

 This CAT Pump has lasting life and high performance. With its 1725 RPM, it allows multiple drive options which include direct drive, flexible coupling, clutch or belt drive. The plungers are built with ceramic plungers that are standard NBR [Buna-N] seals and o-rings.

Features to Know:

  • Triplex design offers high efficiency and low pulsation
  • Durable high pressure seals are lubricated and cooled by pump liquid
  • Pre-Set Lo-Pressure seals provide secondary protection against external leaks and require no packing adjustment
  • Standard NBR seals with alternative options for temperature and chemical compatibility

Specifications to Know:

  • Max PSI: 2500
  • Max GPM: 4
  • Max RPM: 1725
  • Max Temperature: 160 F
  • Shaft Diameter: 20mm
  • Bore: 18mm
  • Stroke: 16mm
