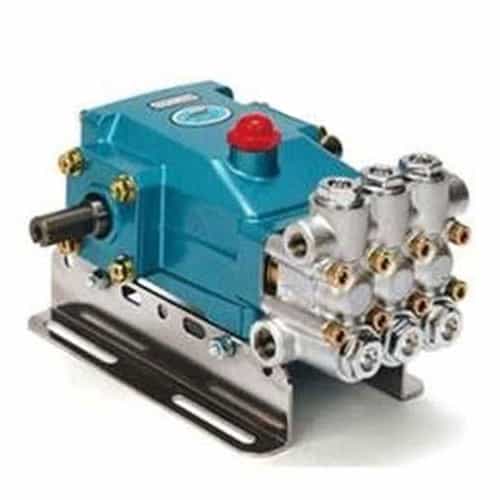

CAT Pumps 5CP6120.3400 Plunger Pump For High Temperature Applications

Brand:
Mfr. Model #:
5CP6120.3400
KR Part #:
PU5CP6120.3400
Weight:
22.50 lbs
Usually Ships in 2 Weeks
MSRP
$2,096.00
Now Only!
$1,073.16
Reaches 1400 RPM and 1600 PSI. Uses a special blend of PTFE for low and high-pressure seals. Great for performing at high temperatures.



Technical Specifications

Bore: 20 millimeter
Crankcase Capacity: 17 ounce
Shaft Diameter: 20 millimeter
RPM: 1400
Stroke: 18 millimeter
Max Temperature: 200 degrees F
Max PSI: 1600
Max GPM: 6
Inlet Port: 1/2 inch

Product Description

CAT High Temperature Application Plunger Pump

Reciprocating Triplex positive displacement plunger pump. Features 3 plunger rods. Pump runs at 1400 RPM and can reach pressures up to 1600 PSI. Constructed with a chrome-plated forged brass manifold. Contains 304 stainless steel valve assemblies and solid ceramic plungers and standard NBR (Buna-N) O-rings. Low-pressure and high-pressure seals are a proprietary blend of PTFE make this pump great for performing at high temperatures.

Technical Specifications

  • Max Flow: 6 gpm / 22.7 lpm
  • Max Pressure: 1600
  • Inlet Port Size: 1/2" NPT(F)
  • Discharge Port Size: 3/8" NPT(F)
  • RPM: 1400
  • Drive Type(s): Belt, Clutch, Flexible Coupling and Bellhousing
  • Material: Brass
