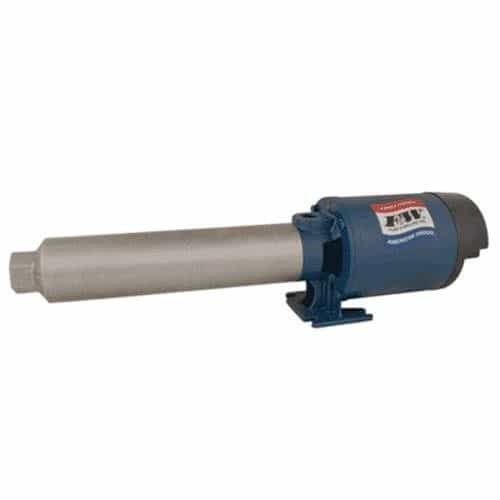

Open Dripproof Booster Pump

Great for a variety of car wash applications such as pressure cleaning, spray or mist systems, jockey pumps, booster service, reverse osmosis, water circulation and general-purpose pumping. Housing is constructed of stainless-steel. Impeller is crafted from Noryl. The pump is able to operate to reach 185 PSI and produces 1 horsepower. Features an Open Dripproof motor housing. Pump can be mounted horizontally or vertically with the inlet down.

Specifications:

• Item: Multi-Stage Booster Pump
• Booster Pump Type: Multi-Stage Booster Pump
• HP: 1 hp
• Voltage: 208 to 240/480V AC
• Phase: 3
• Outlet Size: 3/4 in NPT
• Inlet Size: 3/4 in NPT
• Max. Pressure: 185 psi
• Number of Stages: 14
• Housing Material: Stainless Steel
• Motor Enclosure: Open Dripproof
• Pump Mounting Position: Horizontal or Vertical with Inlet Down
• Amps: 4.5/2.25
• Impeller Material: Noryl
• Impeller Type: Closed
• Max. Case Pressure: 300 psi
• Max. Liquid Temperature: 140 Degrees F
• Seal Material: Stainless Steel, Viton and Carbon/Ceramic
• Wetted Materials: Noryl,304 SS,316 SS,Carbon,Ceramic,Viton,BZ
• Agency Compliance: CSA, CUS, UL Listed
• Manufacturers Warranty Length: 1 yr
• Includes: Kit/Motor Cover Vertical
• Length: 27 1/4 in
• Width: 6 1/2 in
• Height: 9 in
• Bearing Type: Ball
• Duty: Continuous
• Hz: 60/50
• Motor Ambient Temp. Rating: 65 Degrees C
• Suction Lift: 0 ft
• GPM @ 40 PSI: 14.5
• GPM @ 60 PSI: 13.4
• GPM @ 80 PSI: 12.3
• GPM @ 100 PSI: 11.2
• GPM @ 120 PSI: 9.8
• GPM @ 140 PSI: 8.3
• GPM @ 160 PSI: 6.3
• GPM @ 180 PSI: 3.3
• Frame: NEMA 56J
• Max. Dia. Solids: Clear Water
• Motor RPM: 3,450 RPM
