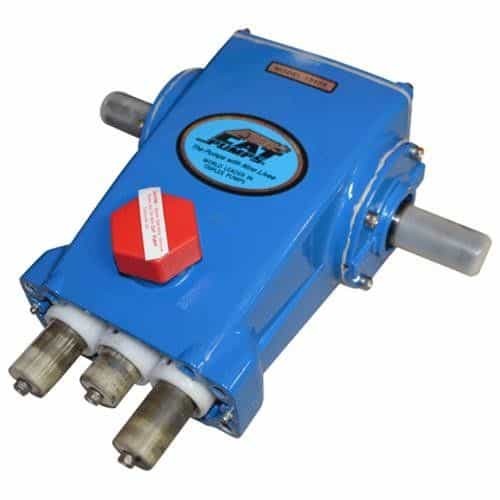

Cat 1540EPLGR Drive End Pump with Plunger

Mfr. Model #:
KR Part #:
50.00 lbs
Usually Ships in 2 Weeks
Now Only!
The CAT Pumps model 1540EPLGR pump has a maximum flow of 18 GPM and a maximum pressure of 1200 PSI.

Technical Specifications

Bore: 30 mm
Stroke: 30 millimeter
Shaft Diameter: 30 millimeter
Bore: 30 millimeter
RPM: 1100
Max Temperature: 140 degrees F
Max PSI: 1200
Crankcase Capacity: 42 ounce
Inlet Port: 1 inch
Max GPM: 18

Product Description

15 Frame Plunger Pump

The 1540EPLGR pump has a triplex design to deliver high efficiency and low pulsation. Its durable high pressure seals are lubricated and cooled by pumped liquid. The pre-set, low-pressure seals provide secondary protection against external leaks and require no packing adjustment. High-density, polished, concentric plungers provide a true wear surface and extended seal life. The wet-end is easily serviced without entering the crankcase.


  • 18 GPM
  • 1200 PSI
  • 1100 RPM
  • 1" Inlet
  • 3/4" Outlet
  • Belt Driven
