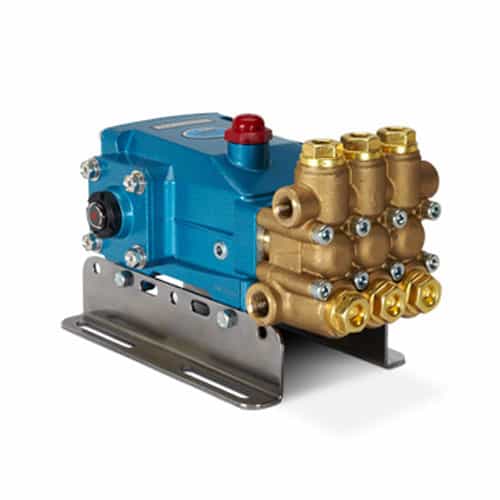

CAT Pumps 5CP3120CSS Triplex Plunger Pump with Side Gauge - 4.5 GPM, 3500PSI, 1645 RPM

Brand:
Mfr. Model #:
5CP3120CSS
KR Part #:
PU5CP3120CSS
Weight:
21.50 lbs

Usually Ships in 2 Weeks

MSRP
$1,587.00
Now Only!
$843.10

 5 frame plunger pump with 3 solid ceramic plungers, a brass manifold, and stainless steel valves. 3500 PSI max pressure and a 4.5 max flow rate. Has two 1/2" FNPT inlet ports and two 3/8" FNPT outlet ports.

NOTE: This pump does NOT come with oil




Technical Specifications

Bore: 16 millimeter
Crankcase Capacity: 17 ounce
Max PSI: 3500
Max Temperature: 160 degrees F
Max GPM: 4.5
Stroke: 18 millimeter
Shaft Diameter: 20 millimeter
RPM: 1645
Inlet Port: 1/2 inch

Product Description

Positive Displacement Triple Plunger Pump

The CAT Pump 5CP3120CSS  Pump is a triplex style plunger pump with a forged brass manifold, 304 stainless steel valve assemblies, and Buna-N seals. This is a five frame model that can be used in applications up to 3500 PSI.

Dimensions: 10.4" x 8.6" x 5.8"

Specifications:

  • 4.5 GPM maximum flow rate
  • 3500 PSI maximum pressure
  • 1645 RPM
  • 1/2" FNPT inlet ports (x2)
  • 3/8" FNPT outlet ports (x2)
  • 16mm bore
  • 18mm stroke
  • 20mm shaft diameter
  • 17 oz. crankcase capacity
  • Weight: 21.50 lbs.

Features:

  • Industrial triplex design offers reliability and versatility.
  • Optional single shaft with side gauge
  • Ultra-compact direct-drive mount to motor using bell housing and flexible coupling or gas engine with gearbox.
  • Optional belt-drive for precision flow setting
  • Press-in seal cases and interchangeable valve assemblies for easy servicing
  • Includes side gauge
  • Please note that this pump does NOT come with oil - find authentic CAT Pumps Oil here.
