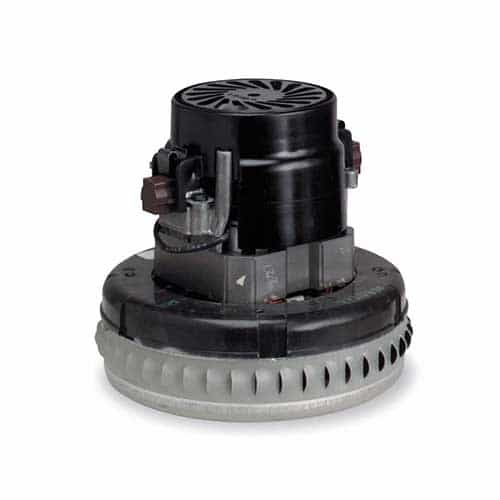

Ametek Lamb 116196-00 Single Stage Peripheral Bypass Vacuum Motor - 120 Volt, 5.7 Inch, 23,125 RPM

Brand:
Mfr. Model #:
116196-00
KR Part #:
VAL6196
Weight:
3.40 lbs
Drop Shipped Item
MSRP
$211.51
Now Only!
$143.68
A single stage motor with a peripheral bypass system. Motor size is 5.7 inches. Operates using 120-Volt power connections.



Technical Specifications

CFM: 133
RPM: 23,125
Voltage AC: 120
Amps: 4.9
Phase: Single

Product Description

Thru Flow Motor

The Ametek Lamb 116196-00 is a vacuum motor with a one stage thru flow peripheral bypass design. Peripheral discharge vacuum AC motors have a design where air flows into the bottom of the motor and is discharged through vents in the motor. This motor is equipped with a cooling fan on top of the motor that blows clean air over the motor for more reliable cooling compared to thru-flow and tangential motors. Features a high starting torque, operates at high speed, and creates vacuum pressure and suction by a rotating motor fan. Move sclean and dry air in commercial canister or utility vacuums, sprayers and foggers, material handling and transfer systems, car wash vacuums, and central vacuum systems. Compatible with 120-Volt electrical connections. Motor measures 5.7 inches.

Specifications:

  • Motor Type: Thru Flow
  • Discharge: Peripheral
  • Bearings: Double Ball Bearing
  • Sealed Vacuum: 49.5 inches
  • Maximum Voltage: 120 VAC
  • Maximum Air Watts: 291
  • Maximum Air Flow: 133 CFM
  • Maximum Amps: 4.9
  • Motor Speed: 23,125 RPM
