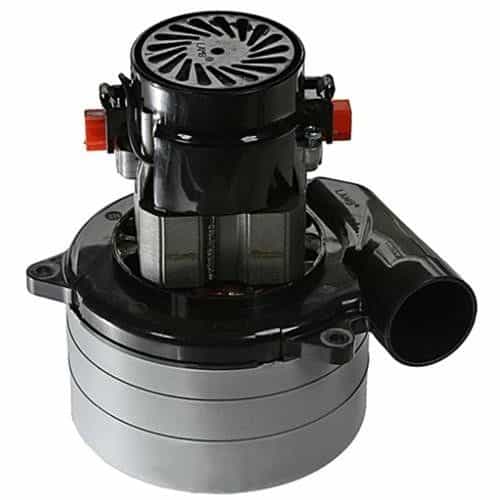

Ametek 116515-29 Three Stage Vacuum Motor - 24 Volt, 5.7 Inch

Brand:
Mfr. Model #:
116515-29
KR Part #:
VAL6515
Weight:
6.82 lbs
Availability:
4
Low Stock Warning
MSRP
$261.81
Now Only!
$167.55

This is a three stage motor with a tangential discharge system. Motor size is 5.7 inches. Compatible with 24-Volt power.

Note: This motor has a 1 1/2-inch tube on the base of the motor.




Product Description

24 Volt Motor

Ametek 116515-29 is a 3-stage tangential bypass vacuum motor. Suitable for 24-Volt power. Motor measures 5.7 inches and reaches a maximum speed of 16,150 RPM. Utilizes double ball bearings.

Specifications:

  • 4/15/2021Motor Type: Bypass
  • Discharge: Tangential
  • Bearings: Double Ball Bearing
  • Sealed Vacuum: 67.6 inches
  • Maximum Air Watts: 142
  • Maximum Air Flow: 69.0 CFM
  • Maximum Amps: 21.50
  • Voltage: 24
  • Stages: 3
  • Motor Speed: 16,150 RPM
  • This motor has a 1 1/2-inch tube on the base of the motor
