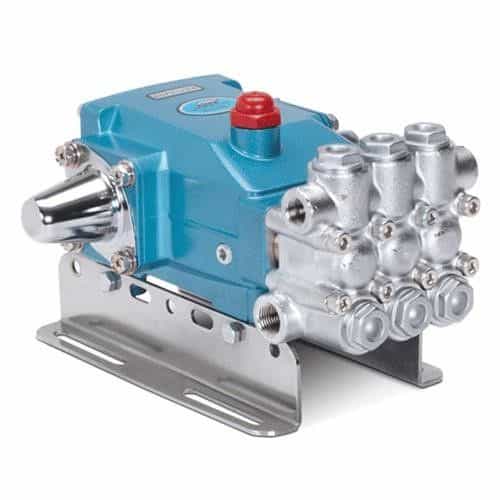

CAT Pumps 5CP2120W.3000 Plunger Pump with W770 Manifold and High-Temp Seals, 4.0 GPM, 2500 PSI, 950 RPM

Mfr. Model #:
KR Part #:
20.80 lbs
Out of Stock - Pre-Order Now
Now Only!
Positive displacement reciprocating plunger pump features W770 manifold. Solid ceramic plungers and high-temperatures seals for hot-water usage. Industrial triplex design offers reliability and versatility, with flow up to 4.0 GPM at pressures up to 2500 PSI. Brackets not included.

Technical Specifications

RPM: 950
Max PSI: 2500
Max GPM: 4
Inlet Port: 1/2 inch
Bore: 20 millimeter
Stroke: 18 millimeter
Shaft Diameter: 20 millimeter
Crankcase Capacity: 17 ounce
Max Temperature: 180 degrees F

Product Description

Powerful High-Temp Car Wash Pump

One of the most popular pumps for self-service car wash bays, the CAT 5CP2120W is a positive displacement reciprocating plunger pump features a W770 manifold. Industrial triplex design offers reliability and versatility while 304 Stainless valve assemblies and solid ceramic plungers provide for a long operating life. High-temp seals provide greater temperature resistance for use in hot-water applications.

Dimensions: 10.35" x 10.0" x 5.78"


  • Durable designcrankcase
  • 304SS Valve assemblies
  • Solid shaft
  • High-temperature seals


  • Maximum Flow: 4.0 GPM
  • Pressure Range: 100 - 2500 PSI
  • Speed: 950 RPM
  • Max liquid temp: 180 F
  • Inlet port: (2) 1/2" NPTF
  • Discharge ports: (2) 3/8" NPTF
