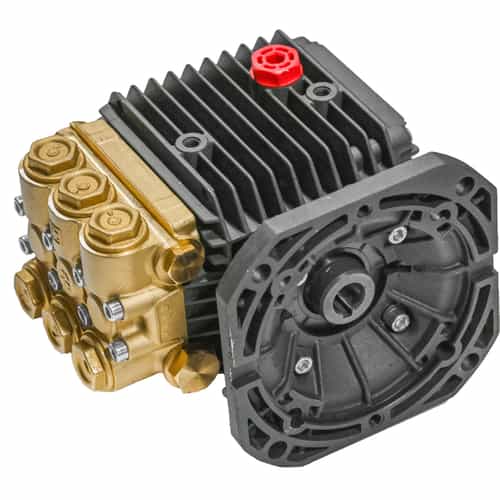

General Pump TT2028

General Pump is a fixture for many car washes given their acclaimed lineup of powerful, reliable pumps. The TT2028EBF certainly fits this description featuring specifications like 3400 RPM and 2000 PSI. Part of the 51 Series of triplex plunger pumps, it's flanged for direct couple to electric motors. A 5/8" hollow shaft helps it live up its lofty performance standards.

All pumps from the 51 Series feature a forged brass manifold, a die-cast, anodized aluminum oil-bath crankcase, solid ceramic plungers, and unitized, stainless steel inlet and outlet ports.

Other specifications you might uncover when reading the General Pumps TT2028 manual include its 3.8 EBHP, 2.8 GPM, 15mm bore, and 6mm stroke. It is able to achieve these figures while maintaining a cleek, lightweight profile. Check out our General Pump TT2028 parts breakdown list for further insight into what makes this model so sought-after.

Pump Dimensions: 7.0" x 7.2" x 5.5"

Triplex Plunger Pump Specifications:

• Max GPM: 2.8
• Max RPM: 3400
• Max PSI: 2000
• Max HP: 3.8
• Weight: 11.5 lbs.
• Bore: 15mm
• Stroke: 6.6mm
• Hollow Shaft: 5/8"
• Also available as a left pump (TT2028EBFL)

General Pump TT2028 Rebuild Kit Options

• Valve Kit 1
• Seals Kit 83
• Valve Cap Kit 84
• Seal with Brass Retainer Kit 96
• Packing Kit 97
• Packing Retainer Kit 139
• Piston Packing Kit 140
• Packing Kit 141
