General Pump TT2028EBFL Series 51 Triplex Pump, 2.8 GPM, 2000 PSI, Left Shaft
Brand:
Mfr. Model #:
TT2028EBFL
KR Part #:
GPTT2028EBFL
Weight:
12.00 lbs

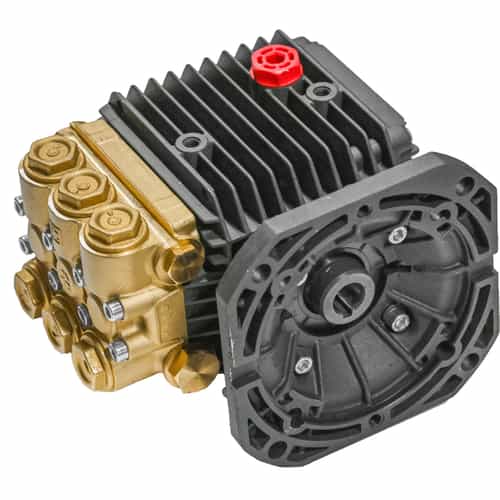

A reliable and hassle-free pump system for direct couple to electric motor (NEMA 56C) for wash applications. Flanged for mounting to NEMA 56C electric motor. Note: picture shows right shaft, but this is a left hand pump.
Technical Specifications
Max PSI: 2000
Max GPM: 2.8
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 11.2 ounce
Horsepower: 3.8
Inlet Port: 3/8 inch
Max Temperature: 165 degrees F
Shaft Diameter: 5/8 inch
Stroke: 6.6 millimeter
Product Description
51 Series Pump with Electric Engine Flange
The General Pump TT2035EBF Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 3400 RPM. Has a maximum flow rate of 3.5 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!
Pump Dimensions: 7.0" x 7.2" x 5.5"
Features include:
- Forged brass manifold with exclusive lifetime warranty
- Die cast, anodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning applications
- Flanged for direct connect to NEMA 56C electric motors
Specifications:
- Maximum Volume: 2.8 GPM
- Maximum Discharge Pressure: 2000 PSI
- Maximum Pump Speed: 3400 RPM
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
- Bore: 15 mm
- Stroke: 6.6 mm
- Crankcase Oil Capacity: 11.2 oz.
- Maximum Fluid Temperature: 165 F
- Inlet Port Thread: 3/8"-19 BSPP-F
- Discharge Port Thread: 1/4"-19 BSPP-F
- Shaft: 3/4 in./19 mm, Hollow, Right Side
- Weight: 11.5 lbs.
