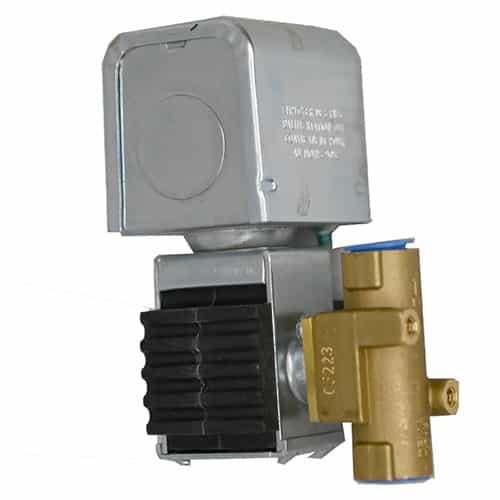

Dema 401P.4 Brass Direct Acting 24VDC DIN Solenoid Valve - 1/4 NPT, Buna

Brand:
Mfr. Model #:
401P.4
KR Part #:
SOD401P24-DC
Weight:
0.90 lbs
Availability:
4
Low Stock Warning
MSRP
$75.20
Now Only!
$48.88
Brass direct-acting solenoid valve with 1/4" ports. 24 volt DC, 150 PSI maximum pressure.
Prep 65

Prop 65




Technical Specifications

Inlet Port: 1/4 inch
Voltage DC: 24
Max PSI: 150
Max Temperature: 200 degrees F

Product Description

Direct Acting Solenoid - 1/4" NPT

The Dema 401P.4 solenoid valve is a direct-acting, normally closed valve designed for low pressure commercial applications. This brass body solenoid has 1/4" NPT pipe threads, a maximum pressure rating of 150 PSI, and a 7/64" orifice.

With direct-acting valves, the stem and plunger assembly opens the port of the valve directly and requires no minimum pressure to operate.

  • 24 volt DC
  • Direct-acting
  • Normally closed
  • Brass body material
  • Buna-N seal
  • 1/4" NPT pipe
  • 2.09 GPM at 60 PSI
  • 7/64" (.109") orifice
  • .27 CV flow factor
  • Maximum 150 PSI
  • Minimum 0 PSI
  • Rated for 200°Fahrenheit fluid and 120° Fahrenheit ambient.

Recommended Applications:

  • Water
  • Air
  • Light Oil
  • Non-Corrosive
  • Non-Explosive Liquids
