CAT Plunger Pump 2.3GPM 1500PSI 1725RP

Brand:
Mfr. Model #:
230
KR Part #:
PU00230
Weight:
16.00 lbs
Out of Stock - Pre-Order Now
MSRP
$1,150.00
Now Only!
$588.80

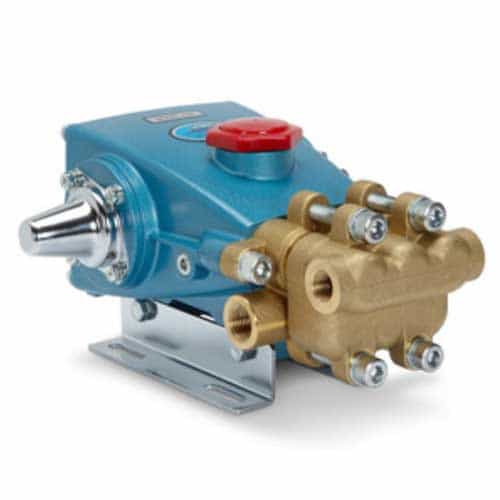

This pump reaches a maximum pressure of 1500 PSI and a maximum flow of 2.3 GPM. The 1725 RPM permits a close coupled installation using a hell housing and flexible coupling or direct-drive motor-pump unit. NOTE: mounting brackets pictured are NOT included.



Technical Specifications

Bore: 18 millimeter
Crankcase Capacity: 15 ounce
Inlet Port: 1/2 inch
Max GPM: 2.3
Max PSI: 1500
Max Temperature: 160 degrees F
RPM: 1725
Shaft Diameter: 16.5 millimeter
Stroke: 7 millimeter

Product Description

2.3 GPM, 1500 PSI, 1725 RPM Plunger Pump

The CAT Pumps 230 series pump has a triplex design that delivers high efficiency and a smooth, low-pulsation flow. It offers installation flexibility with compact direct-drive or belt-drive.

This positive displacement, reciprocating, plunger pump has a forged brass manifold. It also features 304 stainless steel valve assemblies, solid ceramic plungers, and standard NBR Buna-N seals and o-rings.

Pump Dimensions: 10.51" x 8.78" x 5.30"

  • Maximum flow: 2.3 GPM
  • Pressure range: 100-1500 PSI
  • 1725 RPM
  • Stroke: 0.287"
