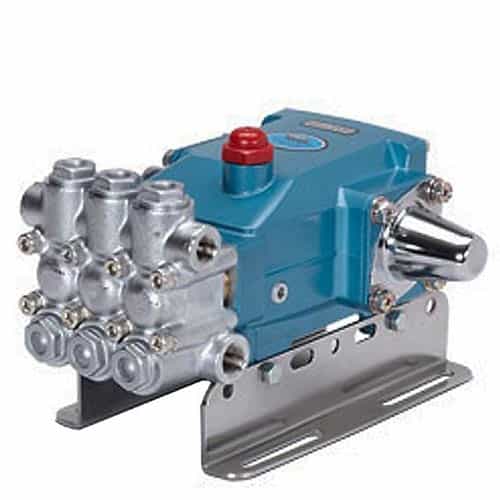

CAT Pumps 5CP5140CSSG1 5CP Plunger Pump with Gearbox, 6.2 GPM, 3000 PSI

Brand:
Mfr. Model #:
5CP5140CSSG1
KR Part #:
PU5CP5140CSSG1
Weight:
27.00 lbs
Usually Ships in 2 Weeks
MSRP
$2,330.00
Now Only!
$1,192.96
High quality plunger pump with gearbox that can achieve up to 6.2 GPM and 3000 PSI. Features a forged brass manifold, stainless steel valves, and Buna-N seals/o-rings. Use it for water transfer and wash applications at your facility.



Technical Specifications

Bore: 18 millimeter
Crankcase Capacity: 17 oz.
Inlet Port: 1/2 inch
Max GPM: 5.5
Max PSI: 3500
Max Temperature: 160 degrees F
RPM: 1500
Shaft Diameter: 20 millimeter
Stroke: 20 millimeter

Product Description

6.2 GPM CAT Pump with Gearbox

This CAT 5CP5140CSSG1 5CP Series pump features a chrome-plated forged brass manifold with 304 stainless steel valve assemblies and solid ceramic plungers. It also has standard NBR (Buna-N) seals, o-rings, and a side bubble gauge.

This plunger pump comes complete with a gearbox attached for direct mounting to a gas engine drive. The press-in seal cases and interchangeable valves provide easy servicing for a long life.

Dimensions: 10.89 X 10.0 X 5.78"

Features

  • Triplex design with three plunger rods
  • Includes side bubble gauge
  • Mounts to gas engine with gearbox
  • Chrome-plated forged brass manifold

Specifications

  • Maximum Flow: 6.2 GPM
  • Maximum Pressure: 3000 PSI
  • Maximum Temperature: 160°F
  • Pump Speed: 3450 RPM
  • Inlet Port: (2) 1/2" NPT(F)
  • Discharge Port: (2) 3/8" NPT(F)
