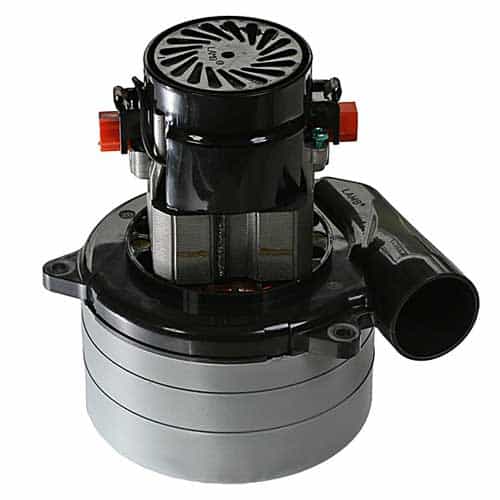

Lamb Ametek 116515-13 Three Stage Vacuum Motor - 24 V, 5.7 In. Dia, 3 Stage

Brand:
Mfr. Model #:
116515-13
KR Part #:
VAL6515-13
Weight:
6.14 lbs
MSRP
$267.64
Now Only!
$191.72

This is a three stage motor with a tangential discharge system. Motor size is 5.7 inches. Compatible with 24-Volt power.

Note: This motor has a 1 1/2-inch tube on the base of the motor.

Drop Ship Icon

DROP SHIP




Product Description

24 Volt Motor

Ametek 116515-13 is a 3-stage tangential bypass vacuum motor. Suitable for 24-Volt power. Motor measures 5.7 inches and reaches a maximum speed of 16,150 RPM. Utilizes double ball bearings. Designed to handle clean, dry, filtered air only.

Specifications:

  • Motor Type: Bypass
  • Discharge: Tangential
  • Bearings: Double Ball Bearing
  • Sealed Vacuum: 67.6 inches
  • Maximum Air Watts: 142
  • Maximum Air Flow: 69.0 CFM
  • Maximum Amps: 21.50
  • Voltage: 24
  • Stages: 3
  • Motor Speed: 16,150 RPM
  • This motor has a 1 7/8-inch tube on the base of the motor
  • Wire leads - no plug
