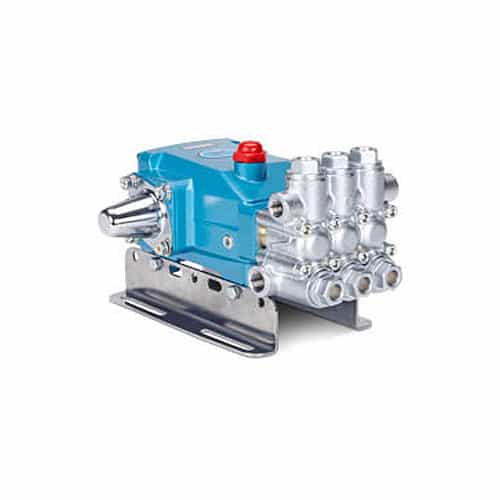

CAT Pumps 5CP6190 Ceramic Triplex Plunger Pump - 10 GPM, 1200 PSI, 1750 RPM

Brand:
Mfr. Model #:
5CP6190
KR Part #:
PU5CP6190
Weight:
21.40 lbs
Availability:
2
Low Stock Warning
MSRP
$1,801.00
Now Only!
$922.20
Includes ceramic plungers and Buna-N seals! NOTE: This pump no longer includes a shaft protector.



Technical Specifications

Bore: 22 mm
Crankcase Capacity: 17 oz.
Inlet Port: 1/2 inch
Max GPM: 10
Max PSI: 1200
Max Temperature: 160 degrees F
Shaft Diameter: 20 mm
Stroke: 20 mm
RPM: 1750

Product Description

Positive Displacement Pump

The CAT Pumps 5CP6190 triplex model is a high quality plunger pump that can achieve up to 10 GPM and 1200 PSI. It features three high-quality solid ceramic plunger rods to deliver reliable positive displacement and reciprocating performance. It comes complete with a chrome plated forged brass manifold, stainless steel valves, and Buna-N seals/o-rings. Use it for water transfer and washes applications at your facility!

Please note that this pump does NOT include a shaft protector.

Dimensions: 11.01" x 10" x 5.82"

  • Maximum flow: 10 GPM
  • Pressure range: 100 - 1200 PSI
  • Maximum speed: 1750 RPM
  • Maximum temperature: 160° F
  • Bore: 0.866"
  • Stroke: 0.787"
  • Crankcase capacity: 17 oz.
  • Inlet ports (2): 0.5" NPTF
  • Discharge ports (2): 0.375" NPTF
  • Shaft diameter: 0.787"
  • 304 stainless steel valves
  • Chrome plated brass manifold
  • Buna-N seals and o-rings
  • Three solid ceramic plungers
  • Positive displacement operation
  • Reciprocating pump
  • CAT Pumps item #5CP6190
  • Weight: 19.9 lbs.
