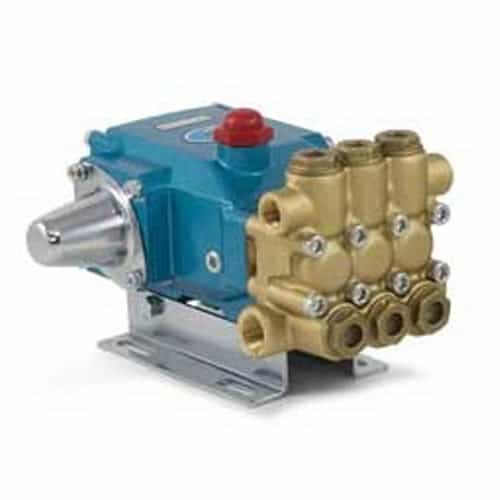

CAT Pumps 3CP1120.3000 Belt Drive Plunger Pump with High Temp Seals - 4.2 GPM, 2200 PSI, 1725 RPM

Brand:
Mfr. Model #:
3CP1120.3000
KR Part #:
PU3CP1120.3
Weight:
16.00 lbs
Availability:
3
Low Stock Warning
MSRP
$1,183.00
Now Only!
$605.70

Belt-drive triplex plunger pump with brass manifold, stainless steel valves, and hot temp seals that tolerate up to 190 degree Fahrenheit temperatures. 4.2 GPM, 1725 RPM, 2200 PSI.

NOTE: Brackets not included.




Technical Specifications

Bore: 18 millimeter
Crankcase Capacity: 12 ounce
Inlet Port: 1/2 inch
Max GPM: 4.2
Max PSI: 2200
Max Temperature: 190 degrees F
RPM: 1725
Shaft Diameter: 16.5 millimeter
Stroke: 12.7 millimeter

Product Description

4.2 GPM High Temperature Three Plunger Pump

The CAT Pumps 3CP1120.3000 pump is a positive displacement, reciprocating, three plunger rod pump. It is has a brass manifold, 304 stainless steel valve assemblies, and solid ceramic plungers. This model features special seals that allow for high-temperature liquids up to 190 degrees Fahrenheit.

Designed for belt-driven applications, this high-pressure triplex pump is durable and reliable enough for commercial applications like car washes and pressure washing businesses. 4.2 GPM flow rate, 2200 maximum PSI, and 1725 maximum RPM.

Specifications:

  • 4.2 GPM maximum flow rate
  • 100-2200 PSI pressure range
  • 1725 RPM
  • 1/2" NPTF inlet ports (2)
  • 3/8" NPTF discharge ports (2)
  • Either side pulley mounting
  • 12 ounce crankcase capacity
  • 190 degrees Fahrenheit standard liquid temperature
  • .50" (12.7 mm) stroke
  • .65" (16.5 mm) shaft diameter
  • .709" (18 mm) bore
  • Dimensions: 9.1" x 8.78" x 5.47"
  • Brass manifold
  • 304 stainless steel valves
  • High-temp seals
  • Belt drive type

Features:

  • Triplex design offers high-efficiency and low pulsation.
  • Durable high-pressure seals are lubricated and cooled by pumped liquid.
  • Pre-set Lo-Pressure seals provide secondary protection against external leaks and require no packing adjustment.
  • Special high-density, polished, concentric plungers provide a true wear surface and extended seal life.
  • PTFE seals offer unmatched performance in hot water applications.
  • Convenient press-in style seal case and interchangeable inlet and outlet valves for easy servicing.
  • Wet-end easily serviced without entering crankcase.
