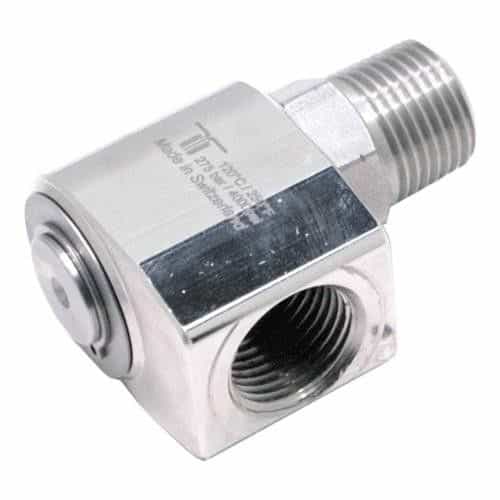

Mosmatic 43.353 Nickel Plated Brass WDC 90 Degree Rotary Union Swivel - 1/2 Inch NPTF x NPTM, 4000 PSI, 30 RPM

Brand:
Mfr. Model #:
43.353
KR Part #:
SWM43353
Weight:
0.56 lbs
Availability:
1
Low Stock Warning
Add to Cart for Price
A swivel is used for ceiling booms in self-serve bays. Nickel plated brass construction. Handles a maximum pressure of 4000 PSI.



Technical Specifications

Max PSI: 4000
RPM: 30
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Max Temperature: 250 degrees F

Product Description

Slide Bearing Swivel

Mosmatic's 43.353 is equipped with a slide bearing system. Constructed with nickel plated brass and stainless-steel inner components for corrosion resistance. Designed for use in celling booms, high pressure hose reels, and high-pressure cleaners. Tolerates a maximum pressure of 4000 PSI and a maximum temperature of 250 degrees Fahrenheit.

Specifications:

  • Pressure: 4000 PSI (27.5 MPa)
  • Temperature: 250°F
  • RPM: 30
  • Body: Brass, Nickel Plated
  • Inner Part: Stainless Steel
  • Seal: O-ring NBR (Optional: EPDM or FKM)
  • Bearing: WDC: Sliding Bearing
  • Throughput: pH 3-12
  • Medium: Filtered 10 Microns, Compressed Air (290 PSI)

Dimensions:

  • G1 (F): 1/2" NPTF
  • G2 (M): 1/2" NPTM
  • NW: 1/2"
  • H: 1.34
  • L1: 1.77
  • L2: 1.14
  • L3: 2.40
  • L4: 1.73
  • L5: 0.59
  • SW: 0.87
  • Weight: 0.56 lbs.

Features:

  • Slide Bearing Systems
  • Stainless Steel
  • Maintenance Free

Applications:

  • High Pressure Hose Reels
  • Celling Booms
  • High Pressure Cleaner
