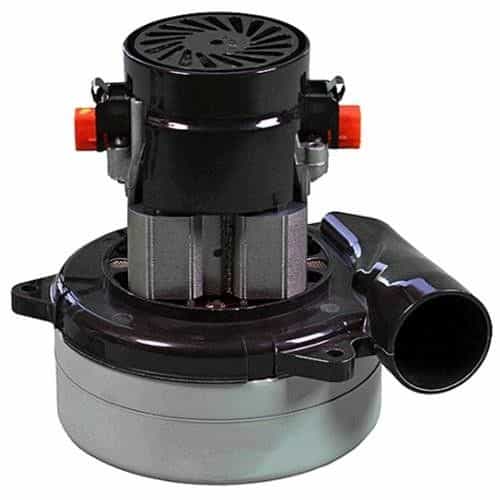

Lamb Ametek 117073-37 Vacuum Motor, 5.7 In. Dia, 2 Stage, 120V

Brand:
Mfr. Model #:
117073-37
KR Part #:
VAL7073-37
Weight:
5.10 lbs
Drop Shipped Item
MSRP
$284.81
Now Only!
$134.22
For use with equipment operating in environments requiring separation of working air from ventilating air. Designed to handle lean, dry, filtered air only. Utilizes a tangential discharge system.



Product Description

5.7" Tangential Bypass Motor

An electric motor featuring a tangential bypass discharge system. Utilizes double ball bearings. Used for equipment operating in environments requiring separation of working air from motor ventilating air. Engineered for handling clean, dry, filtered air only. Features a skeleton frame and carbon brushes.

Features:

  • Two stage
  • 5.7" / 145 mm diameter
  • Double ball bearings
  • Single speed
  • Tangential bypass discharge
  • Plastic fan end bracket
  • Aluminum commutator bracket
  • UL recognized
  • CSA certified

Specifications:

  • Sealed Vacuum: 101.3 inches
  • Maximum Air Watts: 353
  • Maximum Air Flow: 110.6 CFM
  • Motor Speed: 26,260 RPM
  • Voltage: 120VAC, 50/60Hz
  • Max Amps: 12.3A
