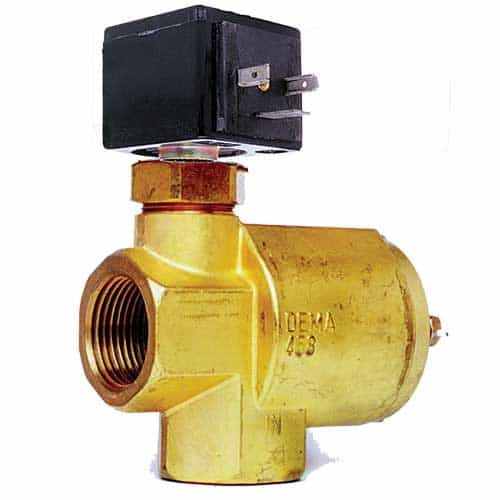

Dema 458P.4D Brass Normally Closed High Pressure Solenoid Valve - 24VDC DIN Coil, 1 Inch Diameter Pipe

Brand:
Mfr. Model #:
458P.4D
KR Part #:
SOD458P24-DIN
Weight:
4.30 lbs
Availability:
1
Low Stock Warning
MSRP
$363.29
Now Only!
$236.14
This is normally closed brass solenoid valve from Dema. Tolerates pressures of 1200 PSI. Includes a 24VDC DIN coil.
Prep 65

Prop 65




Technical Specifications

Max PSI: 1200
Inlet Port: 1 inch
Outlet Port: 1 inch
Liquid Temperature: 200 degrees F

Product Description

Piston Operated Valve

A pilot operated brass solenoid valve with 24VDC DIN coil. This valve has stainless steel pistons and seats as well as a sleeve. Functions the same as a pilot operated valve. However, the pilot port is located in a separate chamber from the piston permitting operation close to the top plug using more force and a higher opening pressure.

Specifications:

  • Pipe Size: 1 N.P.T.
  • Orifice: 15/16
  • CV: 11.1
  • Body: Brass
  • Seal: Teflon
  • Maximum Pressure: 1200 PSI
  • Minimum Pressure: 10 PSI
  • Maximum Fluid Temperature: 200° F
  • Maximum Ambient Temperature: 120° F
  • DIN Coil: 24 VDC
  • Max GPM @ 60 PSI: 85.98
