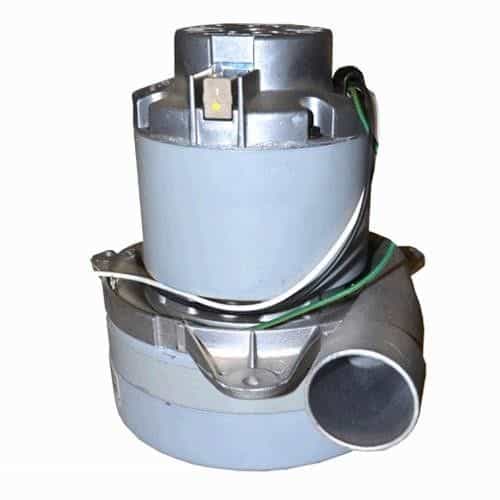

Lamb-Ametek 117500-12 Three-Stage 120 Volt Car Cleaning Vacuum Motor - 14 Amps

Brand:
Mfr. Model #:
117500-12
KR Part #:
VAL117500-12
Weight:
12.00 lbs
In Stock
MSRP
$484.17
Now Only!
$300.18
Three stage replacement motor for car wash vacuums. 120 volt, 14 amps.



Technical Specifications

Phase: Single
Amps: 14
CFM: 102.5
Voltage AC: 120

Product Description

 7.2" Diameter Replacement 3 Stage Vac Motor

The Lamb-Ametek 117500-12 motor measures 7.2" in diameter and operates at 120 volts and a maximum of 14 amps. Boasts a double ball bearing system, a tangential bypass discharge, and an open enclosure design. Replacing a non-functioning motor is a cheaper option than purchasing an new vacuum unit! Get your vacuum back up and running again!

  • Three stage
  • 14 amps
  • 120 volt
  • 50/60 Hz
  • 7.2" diameter
  • 8 7/8" overall height
  • Single phase
  • 102.5 CFM @ 2" orifice
  • Tangential bypass discharge
  • 530 maximum air watts
  • Lug motor mounting type
  • Universal AC/DC motor design
  • Metal mounting brackets
  • Insurance class A
  • Single speed
  • 145.9" sealed vacuum
  • Aluminum commutator bracket
  • Aluminum fan bracket
  • Intermittent duty
  • CSA Certified
  • UL Listed
