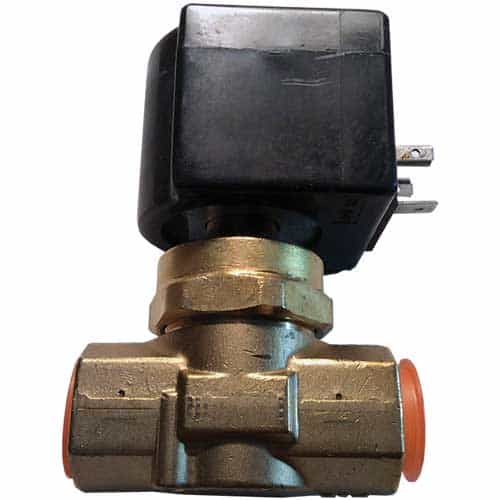

Dema A418P.6D Brass 1 in. Piston Valve with PTFE Seal and 120VAC DIN Coil
Brand:
Mfr. Model #:
A418P.6D
KR Part #:
SOD418P120-DIN
Weight:
5.00 lbs
This A418P piston solenoid valve has a 120 VAC DIN coil, PTFE seal, and maximum pressure of 150 PSI.
Prop 65
Technical Specifications
Max PSI: 150
Voltage AC: 120
Product Description
1" Normally Closed Solenoid Valve - 150 PSI
This is a pilot-piston operated, general purpose solenoid valve. It is designed for use with water, air, light oil, and noncorrosive fluids. Do not use for gas and other hazardous or explosive fluids.
With this A418P model, the stem and plunger assembly opens the port. This releases pressure on top of the piston, which opens the main valve port. Dema pilot-piston solenoid valves are available for 3/8" to 1" pipes: see Related Products section.
Size: 1" NPT
- Rated for 200 degrees Fahrenheit fluid temp. and 120 degrees Fahrenheit ambient temp.
- CV flow factor: 8.00
- Orifice diameter: 0.750
- Brass construction
- Stainless steel seat
- PTFE seal
- 120V AC DIN coil
- Maximum pressure: 150 PSI
- Normally closed
