Dema 401PV Brass Direct Acting Normally Closed Solenoid - 1/4 in., Viton, No Coil

Mfr. Model #:
KR Part #:
0.50 lbs
Low Stock Warning
Now Only!
Brass no coil solenoid valve with 1/4" ports. 120 volt AC, 150 PSI maximum pressure. NOTE: This product is only the solenoid. You will need to install a coil on this valve.
Prep 65

Prop 65


Technical Specifications

Max PSI: 150
Max Temperature: 120 degrees F
Liquid Temperature: 200 degrees F
Inlet Port: 1/4 inch

Product Description

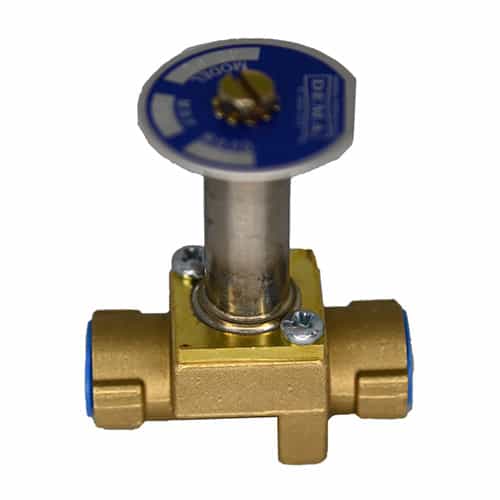

Coilless Brass Solenoid - 1/4" NPT

The Dema 401PV solenoid valve is a direct-acting, normally closed valve designed for low pressure commercial applications. This brass body solenoid has 1/4" NPT ports, a max pressure of 150 PSI, and a Viton seal. This valve does NOT come with a coil junction box.

With direct-acting valves, the stem and plunger assembly opens the port of the valve directly and requires no minimum pressure to operate.

  • No coil
  • Direct-acting
  • Normally closed
  • Brass body material
  • Viton seal
  • 1/4" NPT pipe
  • 2.09 GPM at 60 PSI
  • 7/64" (.109") orifice
  • .27 CV flow factor
  • Maximum 150 PSI
  • Minimum 0 PSI
  • Rated for 200°Fahrenheit fluid and 120° Fahrenheit ambient.

Recommended Applications:

  • Water
  • Air
  • Light Oil
  • Non-Corrosive
  • Non-Explosive Liquids
