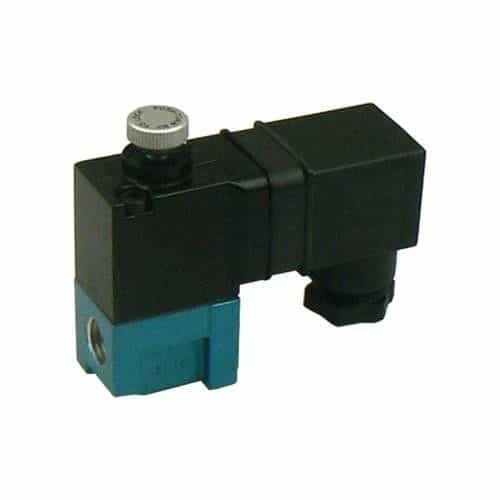

Mac Valves 113B-114JA Universal 3 Way Solenoid Valve - Square Connector DIN, 120/60 Volt, 150 PSI, 1/4 Inch

Brand:
Mfr. Model #:
113B-114JA
KR Part #:
MAC2020
Weight:
0.52 lbs
Availability:
4
Low Stock Warning
MSRP
$72.46
Now Only!
$48.95
A 100 Series 3 way solenoid valve. Used in applications involving compressed air, vacuum, and inert gasses. Compatible with 120 VAC electrical connections.



Product Description

100 Series In-Line Solenoid Valve - 3 Way

The Mac Valves 113B-114JA is a 3 way solenoid valve equipped with a 1/2 inch DIN and square connectors. Ports measure 1/4 Inch NPTF. Features burn-out proof solenoid compatible with 120/60 volt AC electrical connections. Made with a balanced poppet that is immune to pressure variations.


Specifications:
  • Port: 1/4” NPTF
  • DIN: 1/2"
  • Fluid: Compressed air, vacuum, inert gases
  • Pressure range: Vacuum to 150 PSI
  • Lubrication: Not required, if used select a medium aniline point lubricant (between 180°F and 210°F)
  • Filtration: 40 µ
  • Temperature range: 0°F to 140°F (-18°C to 60°C)
  • Flow (at 6 bar, ∆P=1bar): 0.18 Cv
  • Coil: General purpose class A, continuous duty, encapsulated
  • Voltage range: -15% to +10% of nominal voltage
  • Protection: Consult factory
  • Power: Inrush: 14.8 VA Holding : 10.9 VA = 1 to 17 W
  • Response times: 120/60 Energize : 3-8 ms De-energize : 2-7 ms

Features:
  • Balanced poppet, immune to variations of
  • pressure.
  • Short stroke with high flow.
  • The patented solenoid develops high shifting
  • forces.
  • Powerful return spring.
  • Manual operator standard on all valves.
  • Burn-out proof solenoid on AC service.
