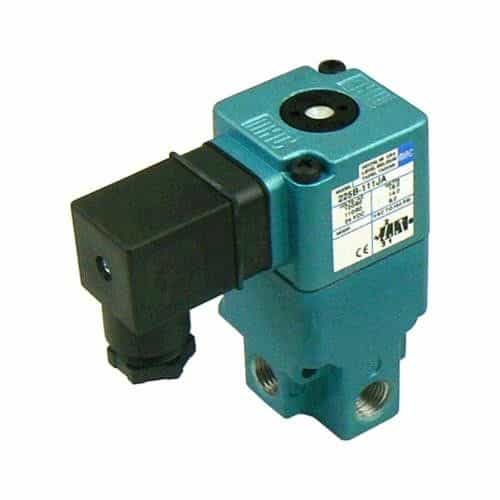

MAC Valves 225B-111JA Series 200 Universal Inline Direct Solenoid Valve

Brand:
Mfr. Model #:
225B-111JA
KR Part #:
MAC2070
Weight:
1.36 lbs
In Stock
MSRP
$100.27
Now Only!
$67.76
Single operator inline direct solenoid operated 3-way poppet valve with 1/4" NPTF ports. Made for car wash, vacuum, and other applications requiring fast, consistent response time. 120V/60Hz, 110V/50Hz, 24VDC (6.0W) - male-only square DIN connector. Part of the MAC 200 Series.



Technical Specifications

Voltage AC: 120
Max PSI: 150
Min Temperature: 0 degrees F
Max Temperature: 140 degrees F
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch

Product Description

Series 200 Universal Inline Direct Solenoid Valve

The MAC 200 Series of inline solenoid operated poppet valves includes excellent options for car wash, vacuum, diverter, or selector applications where fast response time, high shifting forces and long life are crucial. The MAC Valves 225B-111JA is a single operator 3-way direct solenoid poppet valve with a short stroke, conical seats, and a balanced poppet. The balanced poppet design facilities using the same valve for many functions without the necessity of changing any parts.

Specifications:

  • 1/4" NPTF port size
  • 3-way - can be configured to your needs
  • Voltage: 120V/60Hz, 110V/50Hz, 24VDC (6.0W)
  • Temperature Range: 0°F - 140°F (-18°C - 60°C)
  • Pressure Range: Vacuum - 150 PSI
  • Single, non-locking manual operator
  • Square DIN connector

Series Features:

  • Patented MACSOLENOID for fastest possible response times
  • Bonded balanced poppets for high flow, precise repeatability, and consistent operation.
  • Balanced poppet design permits versatility in piping. Valves can be piped as 3-way or 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications.
  • Use on lube or non-lube service.
  • Extremely high cycle rates.
  • Extremely long service life due to unique poppet cushions.
  • Manual overrides as standard.
  • Formerly part #MAC225B111JA
