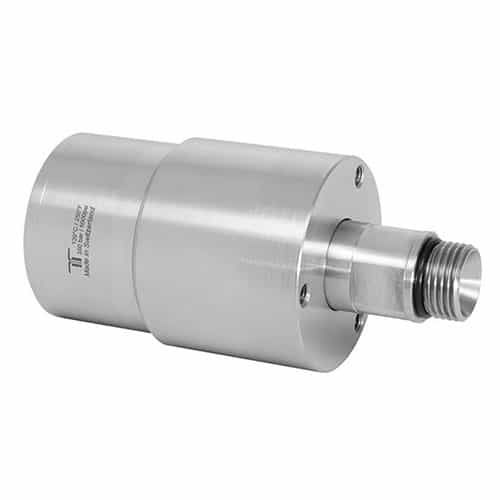

Mosmatic 59.153 Stainless Steel Flanged DYT Rotating Swivel - 3/8 in. x 3/8 in., 5000 PSI
Brand:
Mfr. Model #:
59.153
KR Part #:
SWM59153
Weight:
2.80 lbs
Out of stock - Pre-Order Now!
This is a self-rotating swivel engineered for high pressures. Features a quadruple bearing system. Made with stainless-steel.
Technical Specifications
Max PSI: 5000
Max Temperature: 250 degrees F
RPM: 2000
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Product Description
Stainless Steel Rotary Union
This rotary union is designed for high precision and quality in high pressure applications. Operates using a quadruple bearing system. Swivel is crafted using stainless-steel. Used in applications such as high pressure, thrust, radial force, self-rotation, and surface cleaners.
Specifications:
- Inlet G1: 3/8" NPTF
- Outlet G2: 3/8" NPTM
- Nw: 1/4"
- Sw1: 0.63
- L1: 2.83
- L2: 4.29
- L3: 0.43
- Weight: 53.7 Oz.
- Pressure: DYT: 5000 Psi (35 MPA)
- Temperature: 250 °F
- Rpm: Max. 2'000 Rpm)
- Body: Stainless Steel
- Inner Part: Stainless Steel
- Seal: Carbide
- Bearing: 2x Radial Ball Bearings, 2x Thrust Ball Bearing
- Throughput: Ph 3-12
- Medium: Filtered 10 Microns, Compressed Air (290 Psi)
Features:
- Quadruple bearing system
- High precision and quality
- Seal failure warning, through weep holes
- Sealed stainless steel bearings
- Carbide seals
Applications:
- High Pressure/Rpm
- Thrust
- Radial Force
- Self-Rotating
- Surface Cleaners
- Parts Washer
