Mosmatic 40.028 WDG 90 Degree Rotary Union Swivel - 1/4 in. NPTF x 1/4 in. NTPM Long

Brand:
Mfr. Model #:
40.028
KR Part #:
SWM40028
Weight:
0.52 lbs
Availability:
4
Low Stock Warning
Add to Cart for Price
A stainless steel rotary union from the WDG series designed for ceiling booms and high pressure hose reels and cleaners. Features 1/4 inch inlet and outlet connections.



Technical Specifications

Max PSI: 2200
Max Temperature: 200 degrees F
RPM: 30
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch

Product Description

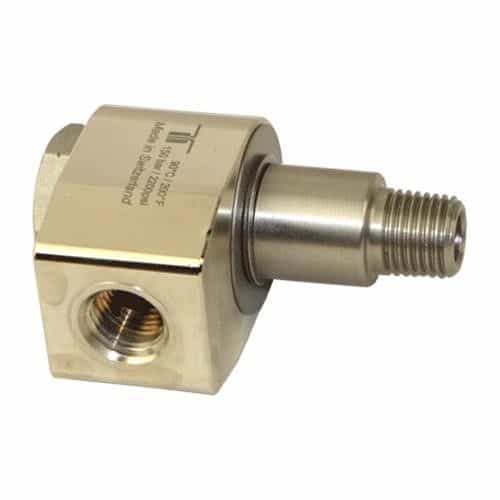

WDG 90 Degree Swivel

The Mosmatic 40.028 WDG swivel is suitable for use on ceiling booms, high pressure hose reels, high pressure washers, and more. It has a maintenance-free design operators love!

This swivel is made of nickel plated brass and has stainless steel inner components. NBR o-rings provide secure seals, and a sliding bearing adds effortless movement. This swivel is suitable for use at pressures up to 2200 PSI and temperatures of up to 200° F.

Specifications:
  • Measures: 2.56" x 1.26" x 1.77"
  • 90 degree bend
  • Inlet: 3/8" NPTF
  • Outlet: 3/8" NPTM
  • Stainless steel inner parts
  • Nickel plated brass body
  • NBR O-ring
  • Sliding bearing action
  • Maximum pressure: 2200 PSI
  • Maximum temperature: 200 degrees F
  • Maximum speed: 30 RPM
  • pH range: 3 - 12
