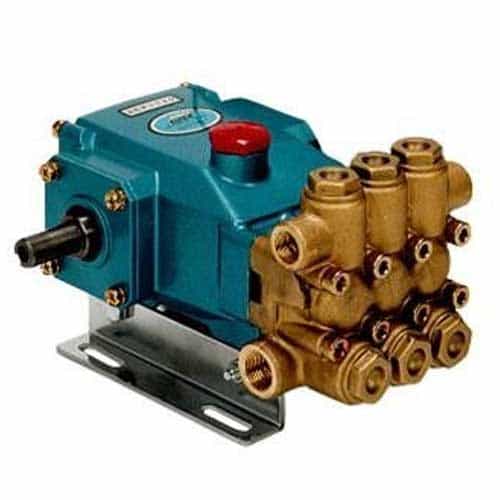

CAT Pumps 3CP1130 Plunger Pump 2.4 GPM, 2200 PSI, 1725 RPM

Brand:
Mfr. Model #:
3CP1130
KR Part #:
PU3CP1130
Weight:
16.94 lbs
Availability:
2

Low Inventory Get It Today

MSRP
$1,193.85
Now Only!
$634.24

Triplex positive replacement reciprocating piston pump. Chrome-plated brass manifolds, 304 stainless steel valve assemblies, and solid ceramic plungers for durability. 1725 RPM permits a close coupled installation with flexible coupling or direct-drive motor-pump. Brackets not included!

NOTE: This pump does NOT come with oil




Technical Specifications

Crankcase Capacity: 12 oz.
Max GPM: 2.4
Max PSI: 2200
Max Temperature: 160 degrees F
RPM: 1725
Bore: 18 millimeter
Stroke: 7 millimeter
Shaft Diameter: 16.5 millimeter
Inlet Port: 1/2 inch

Product Description

Triplex positive replacement reciprocating piston pump. Chrome-plated brass manifolds, 304 stainless steel valve assemblies, and solid ceramic plungers for durability. 1725 RPM permits a close coupled installation with flexible coupling or direct-drive motor-pump. CAT Pump design standards boast reliability and durability for any wash application!

Features:

  • Triplex design offers high efficiency and low pulsation.
  • Durable high pressure seals are lubricated and cooled by pumped liquid.
  • Preset Lo-Pressure Seals provide secondary protection against external leaks and require no packing adjustment.
  • Special high-density, polished, concentric plungers provide a true wear surface and extended seal life.
  • Specially formulated seals offer unmatched performance and extended life.
  • Optional STHT, FPM and EPDM elastomers for compatibility with many liquids and temperatures up to 200°F.
  • Convenient press in style seal case and interchangeable inlet and discharge valves for easy servicing
  • Wet-end easily serviced without entering crankcase.
  • Please note that this pump does NOT come with oil - find official CAT Pumps Oil here.

Specifications:

  • Maximum Flow: 2.4 GPM
  • Maximum Pressure: 2200 PSI
  • Maximum Temperature: 160°F
  • RPM: 1725 RPM
  • Inlet Port: 1/2" NPT(F)
  • Outlet Port: 3/8" NPT(F)
