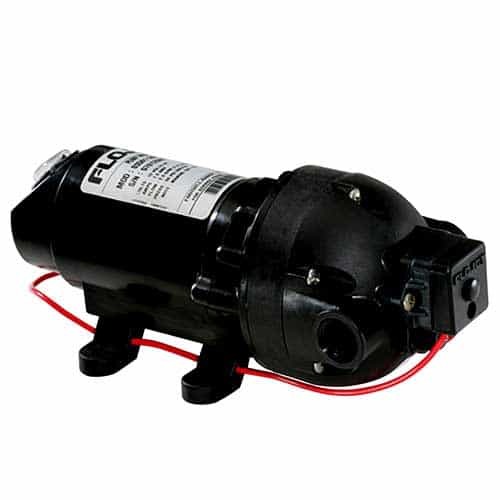

Flojet 03501503A Motor Driven Triplex Diaphragm Pump - 2.0 GPM, 50 PSI, 3/8in. NPT

Brand:
Mfr. Model #:
03501503A
KR Part #:
FP03501503
Weight:
3.43 lbs
Availability:
1
Low Stock Warning
MSRP
$182.21
Now Only!
$132.03
This three chamber sprayer pump is driven by a TENV motor. It delivers a maximum flow rate of 2.0 GPM. Constructed to handle a variety of chemicals.
Prep 65

Prop 65




Technical Specifications

Max PSI: 50
Max GPM: 2
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max Temperature: 140 degrees F
Min Temperature: 40 degrees F

Product Description

3/8 NPT - Santoprene Diaphragm Pump

The Flojet 03501503A is a three chamber diaphragm pump with a motor driven design. Features a totally enclosed non-ventilated permanent magnet motor. Its connections measure 3/8" with NPT threading. The pump produces a maximum flow rate of 2.0 GPM. Compatible with 12 VDC, 24 VDC, 115 VAC, and 230 VAC electrical connections.

Specifications:
  • Pump Design: Motor operated 3 chamber diaphragm
  • Motor Design: Permanent magnet DC TENV (Non-Ventilated)
  • Rectified (PmDC) AC
  • Ports: 3/8 NPT
  • Voltages:
    • 12 VDC, 24 VDC
    • 115 VAC, 230 VAC
  • Cycles: 50/60 Hz
  • Amp Draw:
    • 8 amps max. for 12 VDC
    • 0.65 amps max for 115/230 VAC
  • Pump Head: Reinforced Polypropylene
  • Elastomers:
  • Diaphragm Santoprene™
  • Max. Flow Rate: 2.0 GPM (7.6 LPM)
  • Max. Pressure: 50 psi (3.4 bar)
  • Liquid Temperature:
    • 40° F (4° C) Min*
    • 140° F (60° C) Max*
  • Duty Cycle: Intermittent
  • Weight: 3.4 lbs. (1.5 kg)
  • Wiring Options: Standard 18” (46 cm) leads
  • 6 ft. (2 m) cord available for AC
  • Certifications: AC, UL, CE, NSF Components
