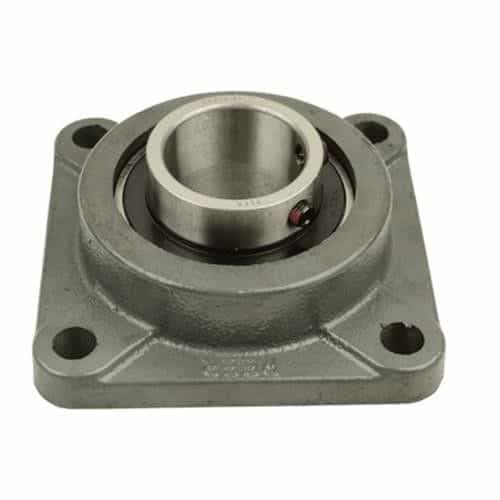

IPTCI UCF211-32 Four Bolt Standard Duty Cast Iron Flange for 2 in. Shafts - 5 1/8 Inch On Center

Brand:
Mfr. Model #:
UCF211-32 IPTCI
KR Part #:
UCF21132
Weight:
7.70 lbs
Out of Stock - Pre-Order Now
MSRP
$135.88
Now Only!
$84.93
Cast iron body flange with a 2" bore. Set screw lock and a wide inner race bearing. Secured to surface with four 5/8" bolts. Measures 5.125" on center.
Conveyor & Tunnel

Conveyor & Tunnel




Technical Specifications

Bore: 2 inch

Product Description

Car Wash Conveyor Shaft Flang

The UCF211-32 Four Bolt Flange is a standard duty flange from IPTCI. This bolt flange is made with quality cast iron and supports 2" diameter shafts used in automatic car washes. It has a set screw lock and a wide inner race bearing.

  • For shafts with a 2" diameter
  • 5 1/8" on center
  • Cast iron housing
  • Set screw lock
  • Wide inner race bearing
  • Bearing Number: UC211-32
  • Housing Number: F211
  • Bolt Used: 5/8"
  • Weight: 7.7 lbs.



Drawing Dimensions:

  • Dimension A: 6 1/2"
  • Dimension Bi: 2.189"
  • Dimension d: 2" shaft diameter
  • Dimension E: 5 1/8"
  • Dimension G: 23/32"
  • Dimension I: 63/64"
  • Dimension L: 1 11/16"
  • Dimension M: 1.315"
  • Dimension N: .8740"
  • Dimension S: 43/64"
  • Dimension Z: 2 5/16
