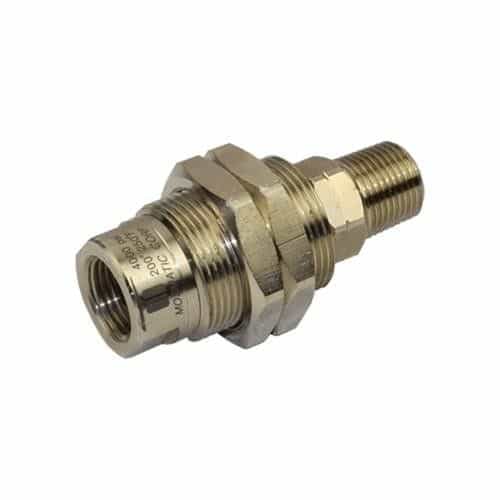

Triple Bearing Rotary Union

Mosmatic DGG 33.653 is made with nickel plated brass that resists corrosion and endures a maximum pressure of 4000 PSI. Utilizes a triple bearing system for high-speed applications at a maximum of 1000 RPM. Engineered for maintenance free operation. Used in high pressure cleaning technology, parts washers, tire cleaners and self-rotating applications.

Specifications:

• Pressure: 4000 PSI (27.5 MPa)

• Temperature: 90°F (at 1'000 rpm), 250°F (at 30 rpm)

• RPM: Max. 1'000 RPM

• Body: DGG: Brass, Nickel Plated

• Inner Part: Stainless Steel

• Seal: O-Ring NBR (Optional: EPDM or FKM)

• Bearing: 2x Radial Ball Bearings, 1x Thrust Ball Bearing

• Throughput: pH 3-12

• Medium: Filtered 10 Microns, Compressed Air (290 PSI)


Features:

• High speed triple bearing system

• Bulkhead fitting for mounting

• Corrosion resistant

• High quality and precision

• Maintenance free


Applications:

• High Pressure Cleaning Technology

• Parts Washers

• Tire Cleaners

• Self-Rotating Applications


Dimensions:

• G1 3/8"NPTF

• G2 3/8"NPTM

• NW 3/8"

• SW1 0.87

• SW2 0.75

• SW3 1.34

• L1 2.63

• L2 0.47

• Weight 7.6 oz
