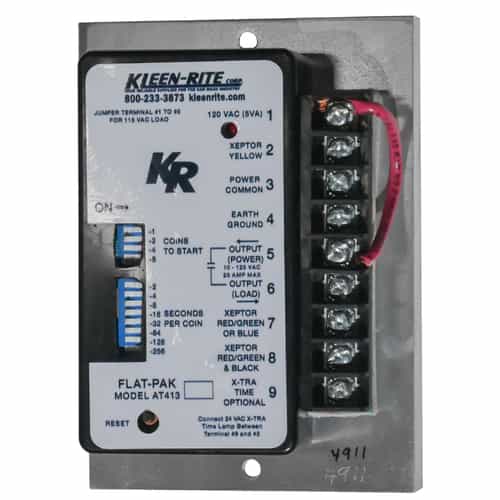

IDX AT413 Vacuum Timer for Coin Acceptors - 115VAC In, 24VAC Out
Brand:
Mfr. Model #:
AT413
KR Part #:
IDXAT413
Weight:
1.03 lbs
GTIN:
814338028649
In Stock
Timer device for the coin acceptor on car wash vacuums. Accumulates time on a per coin basis. 115AC in voltage, 24AC out voltage.
Technical Specifications
Voltage AC: 24
Product Description
1-15 Coin Start Vac Timer
Upgrade your car wash vacuum timers by adding the IDX AT413 Vacuum Timer. This new vac timer has a 1 to 15 coin start and accumulates time per coin. Boasts dual 25AMP SCR outputs that can handle up to 3 standard vacuum motors. This timer is recommended when changing from mechanical acceptors to electronic coin acceptors on your vacuums.
- In Voltage: 115 volt AC
- Out Voltage: 24 volt AC
- 2.5VA/.1AMP
- Dual 25AMP SCR outputs - capable of handling up to three standard vacuum motors
- Time accumulates with each coin
- 1-15 coin start
- Maximum 256 coins to start
- 2 seconds to 8.5 minutes per coin selection
- Works well for upgrading from mechanical to electronic acceptors
Product Reviews
Frequently Asked Questions
Question:can the "output" run two motors or does this need to go to a relay?
thanks!
-
ALAN
(02/08/2024)
Response:Hi Alan, It depends on the make/model of the vac. Some models need a relay. The guys from sales can answer for sure if you can call them with more details on your set up. 1-800-233-3873
