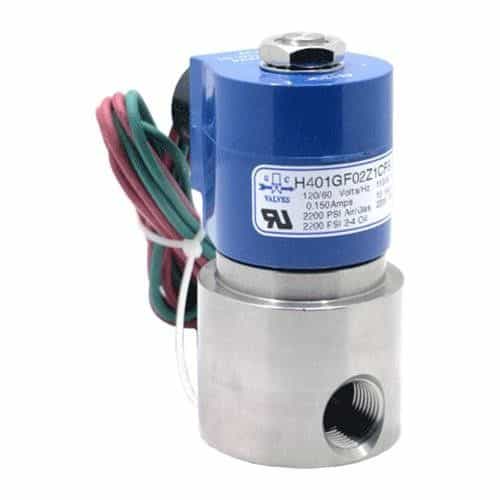

G.C. Valves H401GF02Z1CF5 Normally Closed High Pressure Stainless Steel Valve, 3/8 In., 120V, Conduit Housing
Brand:
Mfr. Model #:
H401GF02Z1CF5
KR Part #:
GC281
Weight:
1.00 lbs
Normally closed high pressure brass 2-way piloted diaphragm solenoid valve. Viton/PTFE seal. 120 VAC/60hz required for power. NEMA 4/4X fully encapsulated conduit housing, 24" lead wires, 1/2" conduit hub.
Technical Specifications
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Orifice: 3/8 inch
Voltage AC: 120
Max PSI: 2200
Max Temperature: 230 degrees F
Product Description
Series 40 High Pressure Normally Closed 2-Way Solenoid Valve
The G.C. Valves H401GF02Z1CF5 valve is a normally closed 3/8" solenoid valve featuring a brass body and Viton/PTFE seals for reliability and durability at high pressures. Able to withstand temperatures up to 230° Fahrenheit and pressures up to 2200 PSI, this valve is a dependable option for use in your car wash! Please note that this valve requires a 120 VAC/60hz electrical connection. NEMA 4/4X fully encapsulated conduit housing, 24" lead wires, 1/2" conduit hub.
- Voltage: 120 VAC
- Valve Size: 3/8" NPT
- Orifice Size: 3/8"
- Max Pressure: 2200 PSI
- Max Temperature: 230°F
- Class F Coil
