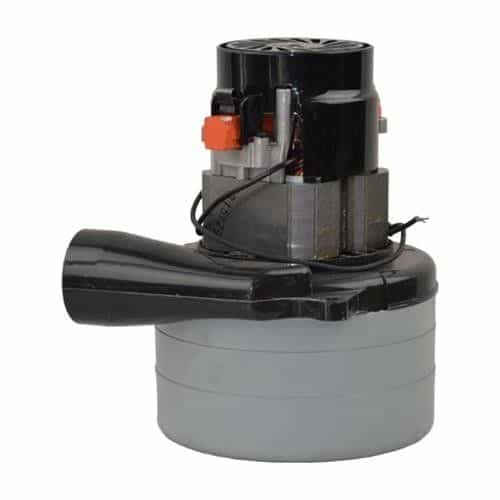

Ametek Lamb 116565-13 Vacuum Motor - 3-Stage Blower, 5.7 in. Frame, 120 V

Brand:
Mfr. Model #:
116565-13
KR Part #:
VAL6565
Weight:
10.63 lbs
GTIN:
814338021961
In Stock
MSRP
$155.68
Now Only!
$131.63
Single-speed, three stage electric thru-flow vacuum motor. 120 V operation, capable of moving up to 99.0 CFM. Specially designed for moving clean and dry air - perfect for your car wash vacuum systems.



Technical Specifications

CFM: 99
Watts: 368
Voltage AC: 120
RPM: 17500

Product Description

99.0 CFM Thru-Flow Vacuum Motor

Compact - 5.7 inches in diameter - the Ametek 116565-13 vacuum motor is an excellent choice for thru-flow vacuum needs. Plastic fan end bracket combines light weight with sturdiness. Designed to handle clean, dry, filtered air only. Units with air-sealed bearings provide added protection against dirt and moisture. Perfect for use with commercial canister and utility vacuum units, sprayers, foggers, and any other central vacuum system at your car wash or auto shop!

Features:

  • 3 stage, single speed; bypass
  • 5.7" diameter
  • 120 volt operation
  • Double ball bearings
  • Open frame construction
  • Provision for grounding
  • Plastic fan end bracket
  • Open fan construction
  • Tangential discharge
  • UL recognized
  • CSA certified

Product Reviews

Frequently Asked Questions

Question:I just received my new motors and when connected there is a screeching sound like its binding. Is there a shipping screw or something that needs to be removed before use? - Frank (09/13/2021)
Response:No, there is not. If you are still having performance issues, please contact our customer service department 800-233-3873
