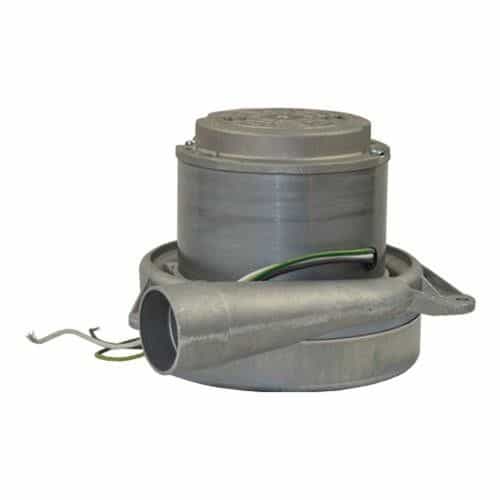

Ametek 115334 Tangential Bypass Vacuum Motor - 2 Stage, 7.2 Inch, 120 Volt, 17400 RPM

Brand:
Mfr. Model #:
115334
KR Part #:
VAL5334
Weight:
10.63 lbs
GTIN:
814338021930
In Stock
MSRP
$380.92
Now Only!
$238.20
A new motor for vacuums that require a 120 volt, 7.2 inch, and 2 stage motor. Designed with a tangential discharge system. Handles a maximum speed of 17400 RPM.



Technical Specifications

RPM: 17400
Voltage AC: 120
Amps: 13

Product Description

2 Stage Vacuum Motor

The Ametek 115334 is a 2 stage bypass type vacuum motor for car wash vacuums. Its size profile measures 7.2 inches. Features a tangential discharge system. Motor tolerates a maximum speed of 17,400 RPM. Compatible with 120 volt electrical connections.

Specifications:
  • Motor Type: Bypass
  • Discharge: Tangential
  • Bearings: Double Ball Bearing
  • Sealed Vacuum: 110 inches
  • Maximum Air Watts: 384
  • Maximum Air Flow: 102.7 CFM
  • Maximum Amps: 13.0
  • Motor Speed: 17,400 RPM
  • Size: 7.2 Inch
  • Stages: 2
  • Voltage: 120
  • Weight: 10.63 lbs.
  • GTIN: 814338021930
