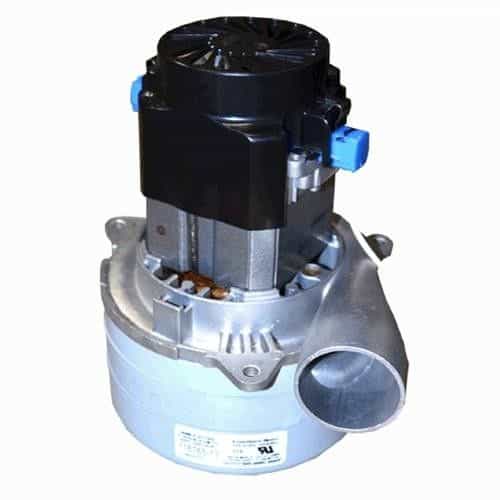

Ametek 116765-13 Tangential Bypass Vacuum Motor - 3 Stage, 5.7 Inch, 120 Volt, 17,700 RPM

Brand:
Mfr. Model #:
116765-13
KR Part #:
VAL6765-13
Weight:
7.49 lbs
In Stock
MSRP
$240.78
Now Only!
$154.10
A new motor for vacuums that require a 120 volt, 5.7 inch, and 3 stage motor. Designed with a tangential discharge system. Handles a maximum speed of 17,700 RPM.

Note: This motor has sealed bearings in it so dust and dirt will not get into the system. This allows for a longer motor life.



Technical Specifications

Amps: 13.1
Voltage AC: 120
RPM: 17700

Product Description

3 Stage Vacuum Motor

The Ametek 116765-00 is a 3 stage bypass type vacuum motor for car wash vacuums. Its size profile measures 5.7 inches. Engineered with sealed bearings to prevent dust and dirt from entering the system. Features a tangential discharge system. Motor tolerates a maximum speed of 17,700 RPM. Compatible with 120 volt electrical connections.

Specifications:
  • Motor Type: Bypass
  • Discharge: Tangential
  • Bearings: Double Ball Bearing
  • Sealed Vacuum: 136 inches
  • Maximum Air Watts: 368
  • Maximum Air Flow: 95.3 CFM
  • Maximum Amps: 13.1
  • Motor Speed: 17,700 RPM
  • Size: 5.7 Inch
  • Stages: 3
  • Voltage: 120
  • Weight: 7.49 lbs.

Product Reviews

Frequently Asked Questions

Question:It is helpful when you list the specs. Amps? CFM? Water lift? - George (12/05/2020)
Response:13.1 Amps, 95 CFM, 136”
