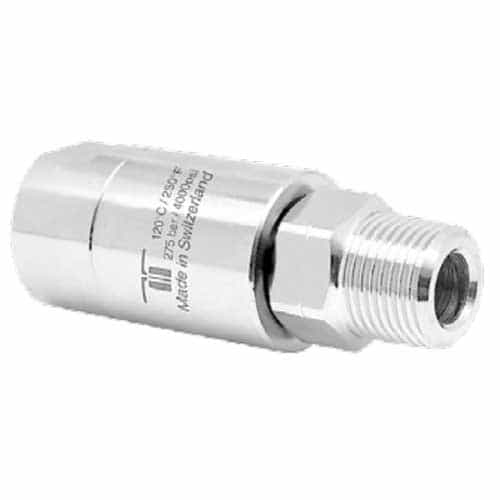

3/8" Triple Bearing Rotary Union

Mosmatic DGL 31.902 is rotary union made with stainless steel to provide resistance to corrosion. Utilizes a triple bearing system to handles high-speed applications at a maximum speed of 1000 RPM. Designed to endure a maximum pressure of 4000 PSI. Used in high pressure cleaning technology, high pressure hose reels, automatic car wash systems, parts washers, tire cleaners and other applications involving self-rotating machinery.

Specifications:

• Pressure: 4000 PSI (27.5 MPa)
• Temperature: 90°F (at 1'000 rpm), 250°F (at 30 rpm)
• RPM: max. 1000 RPM
• Body: DGLI: Stainless steel
• Inner part: Stainless Steel
• Seal: O-ring NBR (optional: EPDM or FKM)
• Bearing: 2x Radial Ball Bearings, 2x Thrust Ball Bearing
• Throughput: pH 3-12
• Medium: Filtered 10 Microns, Compressed Air (290 PSI)

Features:

• High Speed Triple Bearing System
• Corrosion Resistant
• Solid Construction
• Long Service Life
• Maintenance Free
• Applications:
• Thrust And Radial Forces
• High Flow
• Automatic Car Wash Systems
• High Pressure Hose Reels

Dimensions:

• G1: 3/8" NPTF
• G2: G3/8" M
• NW: 1/4"
• SW1: 0.87
• SW2: 0.75
• L1: 2.59
• L2: 0.47
• D: 0.98
• Weight: 5.7 oz
