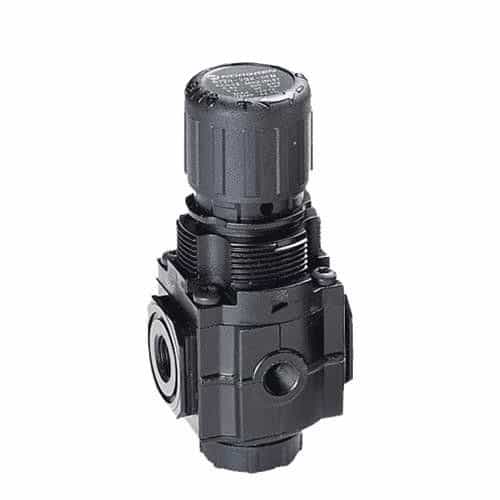

Norgren R73G-3AK-RMN Excelon R73G Series Pressure Regulator - 3/8in. PTF Ports, No Gauge
Brand:
Mfr. Model #:
R73G-3AK-RMN
KR Part #:
REN2216
Weight:
1.52 lbs
The Norgren R73G-3AK-RMN Regulator is used with compressed air and neutral gases. This R73G regulator features Excelon design that allows for in-line or modular installation. Balanced valve minimizes the effect of variation in the inlet pressure on the outlet pressure. 300 PSI maximum pressure, 144 scfm flow, 3/8" PTF ports, 5-150 PSIG outlet pressure adjustment range. Does NOT include a gauge.
Technical Specifications
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Bypass Port: 1/4 inch
CFM: 144
Max Temperature: 175 degrees F
Min Temperature: -30 degrees F
Min PSI: 5
Max PSI: 150
Product Description
Norgren R73G Regulator
The Norgren R73G-3AK-RMN is a pressure regulator ideal for compressed air and neutral gases. It features Excelon design that allows for in-line or modular installation. Its balanced valve minimizes the effect of variation in the inlet pressure on the outlet pressure. Handles up to 300 PSI maximum pressure and 175° Fahrenheit.
R73G-3AK-RMN Details
- Medium: Compressed air, neutral gases
- Maximum pressure: 300 PSI
- Operating Temperature: -30° to 175° Fahrenheit
- Flow: 144 scfm
- Port size: 3/8" PTF
- Gauge NOT included
- Outlet Pressure Adjustment Range: 5 to 150 PSIG
- Body: Aluminum
- Bonnet: Zinc
- Valve: Acetal
- Elastomers: Nitrile
- Valve: Polypropylene and TPV
