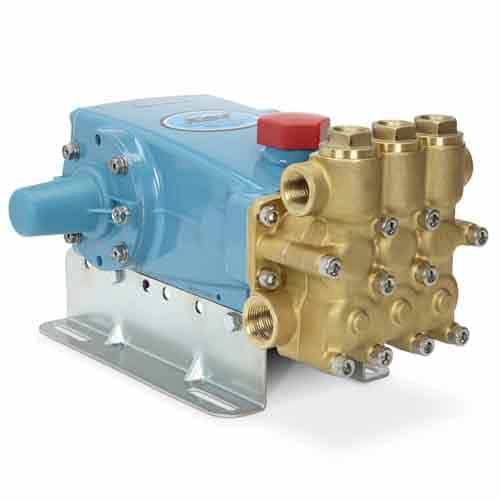

CAT Pumps 1540E Mid-Size 15 Frame Plunger Pump - 19.3 GPM, 1200 PSI, 1180 RPM

Brand:
Mfr. Model #:
1540E
KR Part #:
PU1540E
Weight:
46.60 lbs
GTIN:
814338021619
Availability:
3
Low Stock Warning
MSRP
$4,885.00
Now Only!
$2,501.12
High performance, mid-size positive displacement triplex plunger pump. Brass manifold, 304SS stacked valve assemblies, concentric solid ceramic plungers and Buna-N seals and O-rings. Special Liquid Gasket between crankcase and manifold provides extra protection to seal out moisture.



Technical Specifications

Max PSI: 1200
Max Temperature: 140 degrees F
Bore: 30 millimeter
Stroke: 30 millimeter
Shaft Diameter: 30 millimeter
Inlet Port: 1 inch
Outlet Port: 3/4 inch
Crankcase Capacity: 42 ounce
RPM: 1180
Max GPM: 19.3

Product Description

CAT 1540E High-Performance Mid-size Plunger Pump

Step up from the reliable 1540 pump to the CAT Pumps 1540E car wash pump for greater resistance from moisture in wet car wash pump installation, thanks to modernized components including durable blue 2 mil epoxy paint treatment on the crankcase, rear cover and bearing covers and a special Liquid Gasket between the crankcase and manifold. Forged brass manifold and 304SS valve assemblies, along with solid ceramic plungers and standard Buna-N seals, provide durability and reliability. The 1540E is the pump of choice in automatic car wash systems, multi-gun and multi-nozzle cleaning, multi-drop high pressure cleaning systems, portable wet blasting and more!

Dimensions: 14.57 x 13 x 7.20" (370 x 330 x 183 mm)

Features:

  • Special Epoxy painted crankcase, bearing covers and rear cover with liquid gasket seal for added moisture protection.
  • Precision design 304 stainless steel valves and seats are hardened and polished for ultimate seating and extended valve life.
  • Forged Brass manifolds are strong and corrosion resistant.
  • Special concentric, high-density, polished, solid ceramic plungers provide a true wear surface and extended seal life.
  • Specially formulated, CAT PUMP exclusive, Hi-Pressure seals offer unmatched performance and seal life.
  • Die cast aluminum crankcase provides high strength, minimum weight and precision tolerance control.
  • Chrome-moly crankshaft gives unmatched strength and surface hardness.
  • Oversized crankshaft bearings with greater loading capacity mean longer bearing life.
  • Easy maintenance - wet-end is easily serviced without entering crankcase, requiring less time and effort.
  • Inlet and discharge valve assemblies interchange for easier maintenance.
  • Preset packings mean no packing gland adjustment is necessary, reducing maintenance costs.

Specifications:

  • Maximum Flow: 19.3 GPM
  • Maximum Pressure Range: 1200 PSI
  • RPM: 1180 RPM
  • Maximum Liquid Temperature: 140 °F (60°C)
  • Inlet Ports: (2) 1" NPT(F)
  • Discharge Ports: (2) 3/4" NPT(F)
