ZSI Inc 024NS028 Stainless Steel Cush-A-Clamp For 1 1/2in. Tube or Pipe

Brand:
Mfr. Model #:
024NS028
KR Part #:
CLS24NS028
Weight:
0.10 lbs
Out of Stock - Pre-Order Now
MSRP
$40.93
Now Only!
$33.43
A channel mounted pipe clamping system that fits 1 1/2" piping. Designed to reduce noise and vibration. Made with 304 stainless steel to resist corrosion.

Note: Not for use with copper pipe.
Prep 65

Prop 65




Product Description

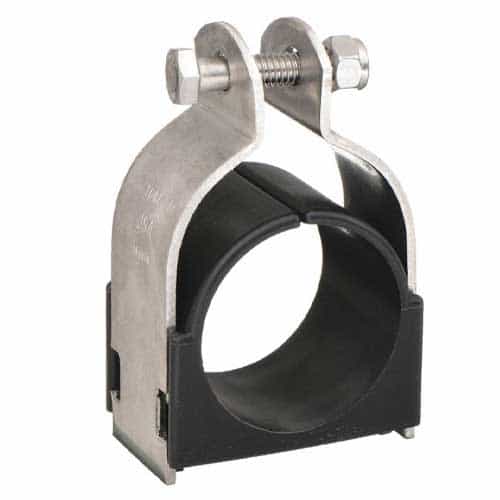

1 1/2" - Cushioned Pipe Clamp

The ZSI Inc 024NS028 is a channel mounted clamping system that is designed to absorb shock and vibration to keep noise levels in your car wash down. It is compatible with 1 1/2 inch piping. The clamp fits any standard channel that is 1-5/8" wide. Constructed with 304 stainless steel to prevent corrosion in wet environment like a car wash.

Specifications:
  • Pipe Size: 1 1/2"
  • Material: 304 Stainless Steel
  • A: 1.50"
  • B: 1.95"
  • C: 0.90"
  • D: 2.47"
  • Description/Special Features: For Strut Mounting of Tube, Pipe or Hose
  • Includes: Nylon Lock Nut, Clamp Halves with Captured Stud, Cushion Standards
  • Conforms with MSS SP-58 and MSS SP-69 (Type 58)
Features:
  • Cush-A-Clap - Channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise, and preventing galvanic corrosion. Cush-A-Clamp fits any standard 1-5/8" wide channel.
  • Assembly consisting of steel clamp with locknut and thermoplastic elastomer cushion. All parts are marked for easy identification and packaged for small lot or bulk use.
  • The Clamp - Features a unique shoulder stud which is securely fastened to one clamp half. Steel clamps for tube sizes up to 1-3/8" have the "Controlled Squeeze" design which eliminates over-tightening and rotation while a nylon-insert nut assures a positive lock.
  • The Cushion - Made from a thermoplastic elastomer, it's built tough to withstand the effects of most oils, chemicals and industrial cleaning compounds, in temperatures from -50 degrees Fahrenheit to 275 degrees Fahrenheit. Interlock edges and channel locator legs ensure that the cushion remains in place.
  • Installation - One man, one tool time savings. Retrofits can be added without disassembly. The "Living Hinge" allows the cushion to be spread apart for quick, easy installation on size from 1/4" through 1-3/4".

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
