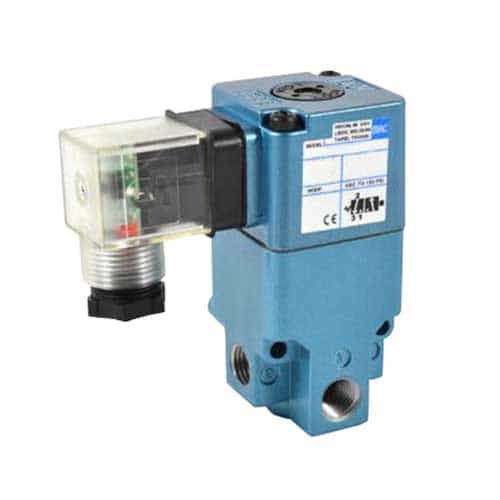

MAC 225B-111CA Three-Way 200 Series 1/4 NPTF Poppet Valve - 120/60, 110/50, 24VDC

Mfr. Model #:
KR Part #:
1.37 lbs
In Stock
Now Only!
Inline direct solenoid 3-way poppet valve. 1/4" NPTF pipe and triple rated coil (120/60, 110/50, 24VDC).

Technical Specifications

Inlet Port: 1/4 inch
Max PSI: 150
Max Temperature: 140 degrees F
Voltage AC: 120
Voltage DC: 24

Product Description

Hazardous Environment Solenoid

The MAC 225B-111CA is a direct solenoid 3-way poppet valve from the 200 Series. 200 Series valves are unique valves designed for hazardous applications. They have a short stroke solenoid, balanced poppet, and a powerful return spring. These attributes result in high shifting forces, consistently fast response times, and a long life. Replacement for old Kleen-Rite part # MAC2060-AA.

Technical Specifications:

  • 3-way operation
  • 1/4" female NPT pipe
  • .5 CV flow
  • 0-150 PSI pressure range
  • 0°-140° Fahrenheit temperature range
  • Inline individual mounting
  • Voltage: 120/60, 110/50, 24 volt DC (6 watt)
  • Universal valve
  • Non-locking manual operator
  • 1/2" NPS conduit electrical connection
  • Formerly part #MAC225B111CA

Operational Benefits:

  • Balanced poppet, immune to variations of pressure.
  • Short stroke with high flow.
  • The patented solenoid develops high shifting forces.
  • Powerful return spring.
  • Manual operator standard on all valves.
  • Burn-out proof solenoid on AC service.

Series Features:

  • The patented MACSOLENOID¨ with its non-burn out feature on AC service.
  • Six valve functions with one Inline valve and four valve functions with one Manifold valve.
  • A triple rated coil for 120/60, 110/50 or 24 VDC (6 Watt).
  • Inline & add-a-unit manifold capability.
  • Use on lube or non-lube service.
  • Extremely rapid response and cycle rate.
  • Various types of manual operators and electrical enclosures.
  • Extremely long service life.
  • Optional low wattage DC solenoids down to 1 watt.
